Brushless DC motors with ironless or iron core winding.
Dynamic. Durable. Highly efficient.
Brushless DC motors from maxon offer a longer service life and higher speeds than brushed DC motors. In addition, they are maintenance-free. This makes them ideal for use in fit-and-forget applications.
maxon BLDC motors: Key information at a glance.
The use of an electronic controller ensures high-precision speed and torque control.
We have structured our series of BLDC motors in accordance with key parameters to help you find the appropriate motor faster.
ECX SPEED∅ 4 ... 22 mm | ECX PRIME∅ 6 ... 16 mm | ECX TORQUE∅ 22 mm | IDX Motor□ 56 ... 70 mm | ECX FLAT∅ 22 ... 42 mm | EC∅ 22 ... 60 mm | EC-max∅ 16 ... 40 mm | EC-4pole∅ 22 ... 32 mm | EC-i∅ 30 ... 52 mm | EC flat∅ 9.2 ... 90 mm | EC frameless flat∅ 43 ... 90 mm | EC frameless DT∅ 42 ... 90 mm | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Ironless winding | Yes | Yes | No | No | No | Yes | Yes | Yes | No | No | No | No |
Internal rotor | Yes | Yes | Yes | Yes | No | Yes | Yes | Yes | Yes | No | No | Yes |
Configurable | Yes | Yes | Yes | Yes | Yes | No | No | No | No | No | No | No |
Size | ∅ 4 ... 22 mm | ∅ 6 ... 16 mm | ∅ 22 mm | □ 56 ... 70 mm | ∅ 22 ... 42 mm | ∅ 22 ... 60 mm | ∅ 16 ... 40 mm | ∅ 22 ... 32 mm | ∅ 30 ... 52 mm | ∅ 9.2 ... 90 mm | ∅ 43 ... 90 mm | ∅ 42 ... 90 mm |
High speed | Yes | Yes | No | No | No | Yes | Yes | Yes | No | No | No | No |
High torque | Yes | Yes | Yes | Yes | Yes | No | No | Yes | Yes | Yes | Yes | Yes |
Dynamic | No | Yes | Yes | Yes | No | No | No | Yes | Yes | No | No | Yes |
Price/performance | No | No | No | No | Yes | No | Yes | No | Yes | Yes | Yes | No |
Additional property | Sterilizable version | Sterilizable version | - | IP65 protection | Short (flat) design | IP54 and heavy-duty version | - | - | - | Short (flat) design | Without housing, short (flat) design | Without housing, hollow shaft |
Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop | Go to shop |
Our product portfolio.

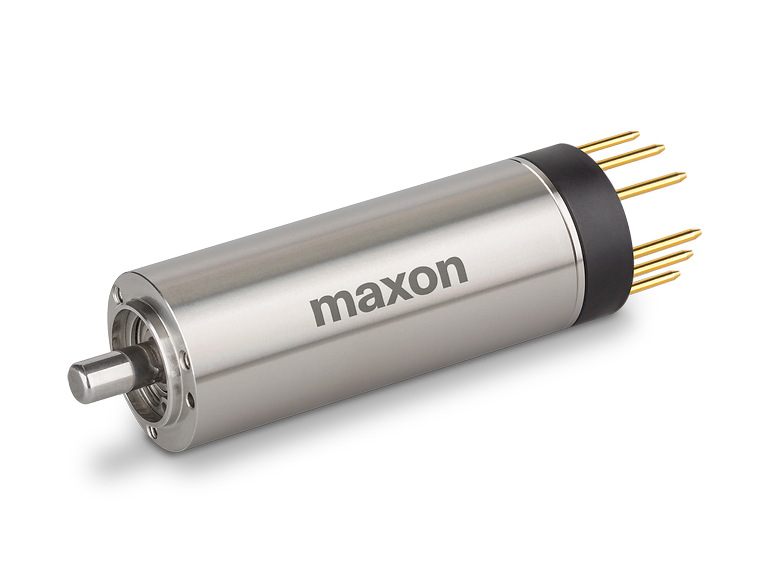

ECX SPEED
Extremely fast and quiet

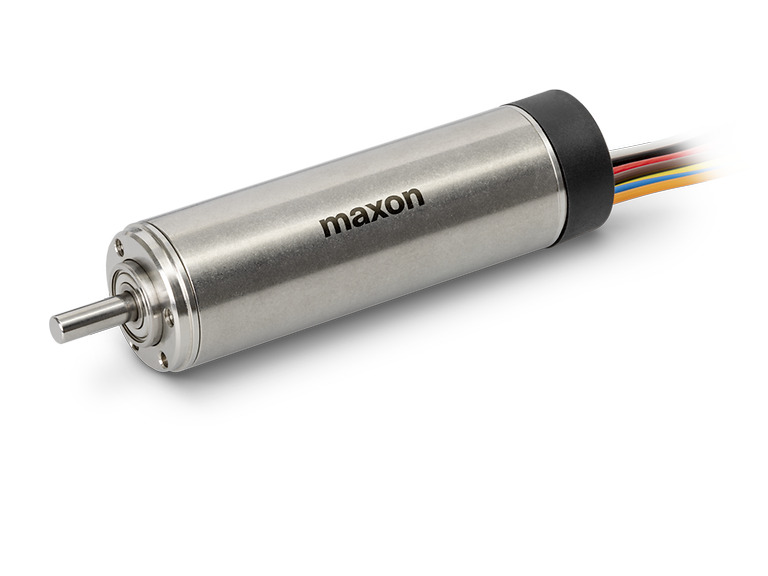

ECX PRIME
Top performance

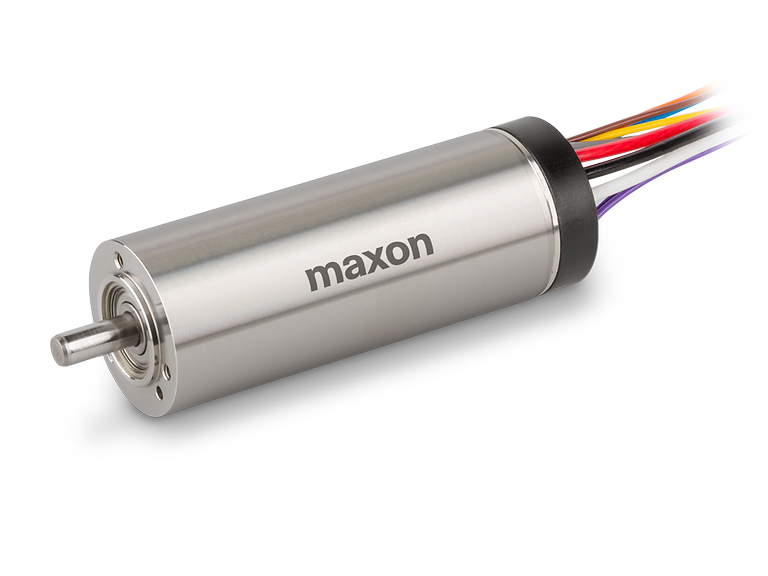

ECX TORQUE
Multi-pole internal motor with high torque

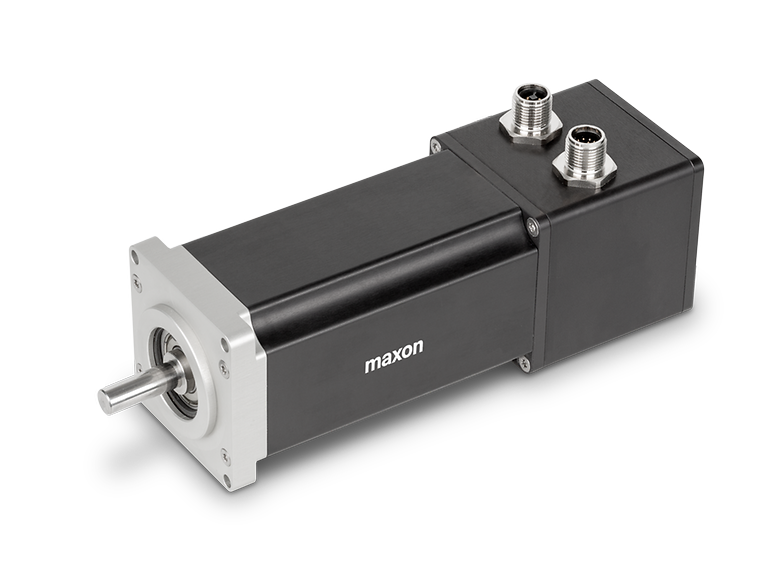

IDX
Power in industrial housings

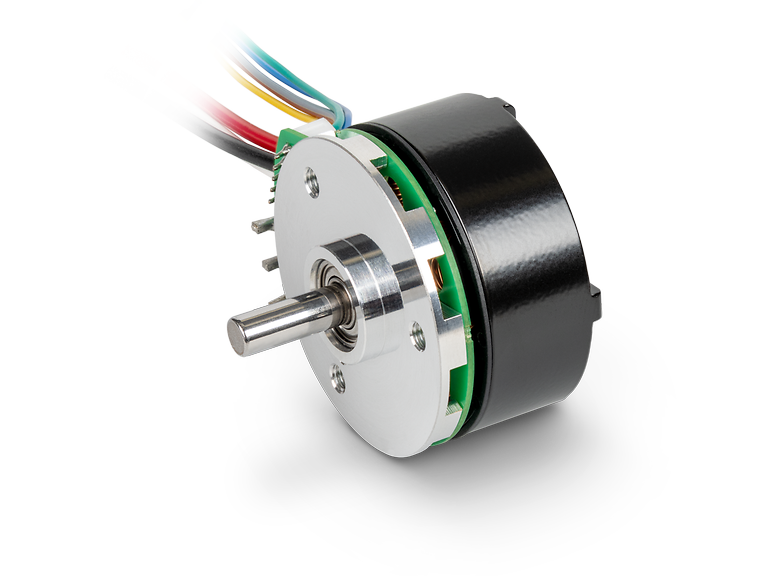

ECX FLAT
High torques in confined spaces

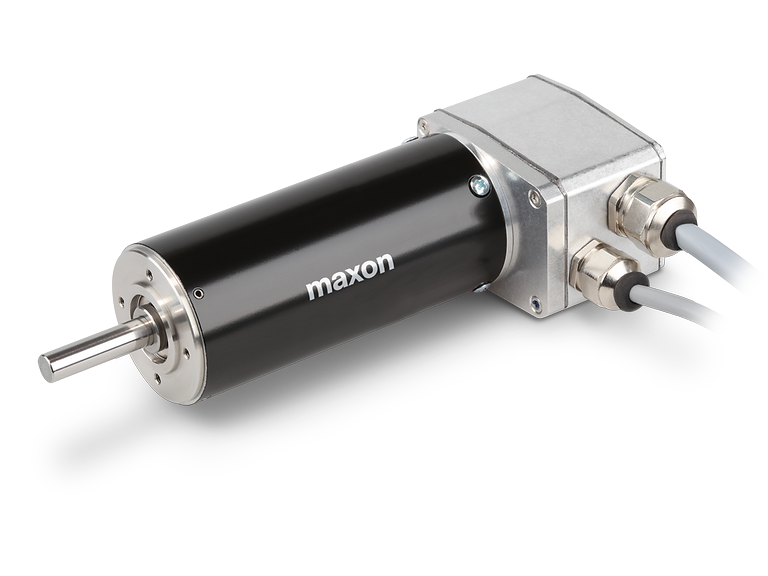

EC
Maximized life span

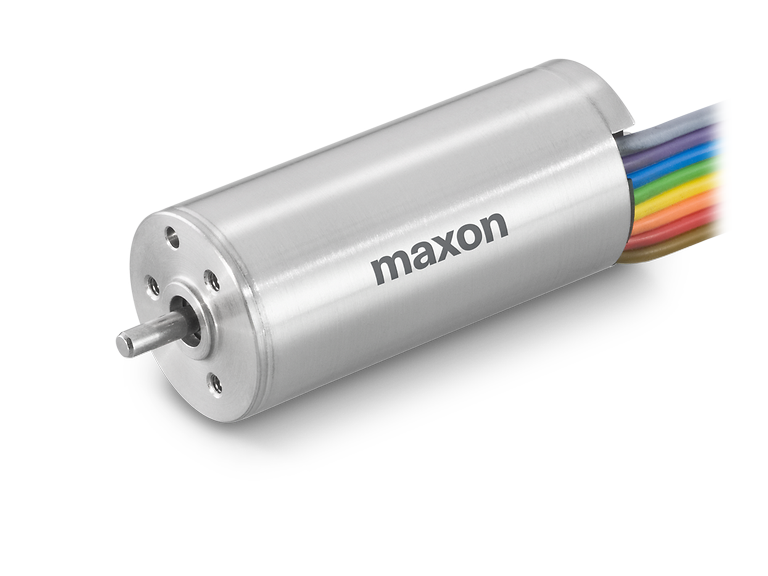

EC-max
A long service life at the best price

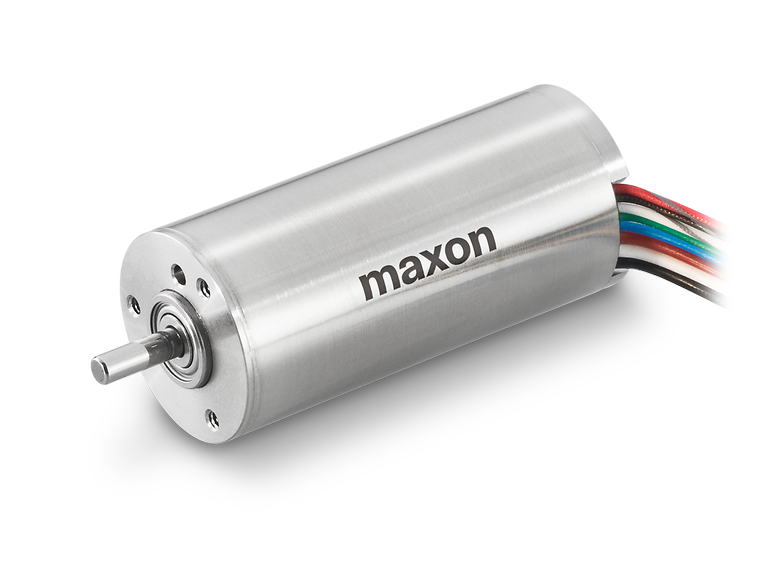

EC-4pole
That is top performance: ∅ 30 mm, 200 W
EC-i
A powerhouse for the smallest spaces
EC flat
Best price for high torques
EC frameless flat
A dynamic motor for robotics
EC frameless DT
Even more dynamics for robotic drives
Parvalux
BLDC motors from Parvalux.
Since 2018, Parvalux Electric Motors Ltd has been part of the maxon Group. Parvalux offers an extensive range of brushless DC motors that are exclusively available from maxon as standalone BLDC motors or in combination with inline or angular gearheads. The motors provide high starting torque, outstanding power density, and quiet operation.
