NRND

EC 45 flat Ø45 mm, brushless, 50 W, with integrated electronics, with cover | 4-Q-Speed Controller

Part number 688724

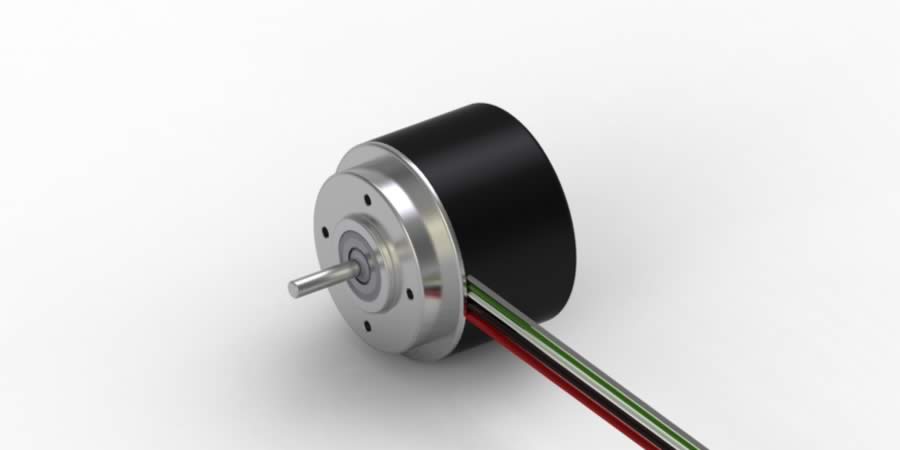

EC 45 flat Ø45 mm, brushless, 50 W, with integrated electronics, with cover
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €256.83
5-19 €217.99
20-49 €176.63
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Specifications

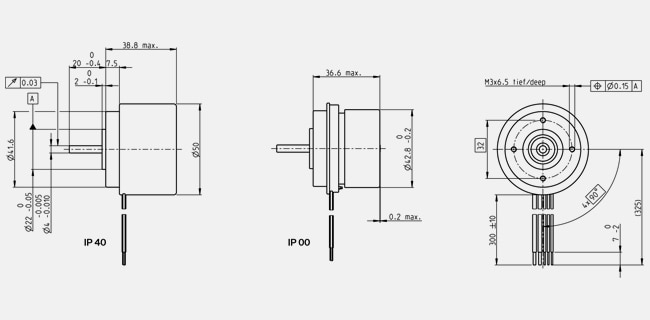

Technical illustrations

Values at nominal voltage
Nominal voltage 24 V
No load speed 4500 rpm
No load current 191 mA
Nominal speed 4500 rpm
Nominal torque (max. continuous torque) 116 mNm
Nominal current (max. continuous current) 2.85 A
Stall torque 164.22 mNm
Stall current 4.63 A
Max. efficiency 80 %
Characteristics
Operating mode Speed
Terminal resistance 0.567 Ω
Terminal inductance 0.413 mH
Torque constant 35.7 mNm/A
Speed constant 268 rpm/V
Speed / torque gradient 0 rpm/mNm
Mechanical time constant 3.76 ms
Rotor inertia 181 gcm²
Speed set value input 0.33..10.89
Scaling speed set value input 600 rpm/V
Speed range 200..6534
Thermal data
Thermal resistance housing-ambient 4.79 K/W
Thermal resistance winding-housing 6.7 K/W
Thermal time constant winding 21 s
Thermal time constant motor 239 s
Ambient temperature -40...+85 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 6534 rpm
Axial play {0} {1}, at radial load {2} {3} {4}
0.14 mm, at radial load > 7 N
Max. axial load (dynamic) 6.8 N
Max. force for press fits (static) 95 N
(static, shaft supported) 1000 N
Max. radial load 63 N, 5 mm from flange
Other specifications
Number of pole pairs 8
Number of phases 3
Number of autoclave cycles 0
Product
Weight 260 g

Description

The flat design of the brushless EC flat motors make them the perfect solution for many applications. The thought-through, simple design makes it possible to largely automate the manufacturing, which results in an economical price.
