| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €175.47 |
| 5-19 | €154.84 | |
| 20-49 | €130.63 | |
| from 50 | On request |
NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

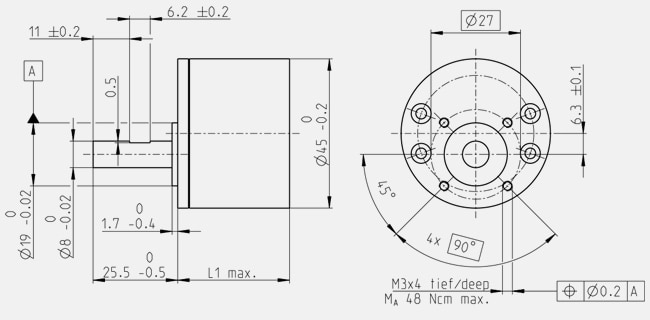

- Dimension drawing
| General information | |
| Gearhead type | GS |
| Outer diameter | 45 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 26 : 1 |
| Absolute reduction | 9405/364 |
| Max. motor shaft diameter | 3 mm |
| Number of stages | 3 |
| Max. continuous torque | 2 Nm |
| Max. intermittent torque | 2.5 Nm |
| Direction of rotation, drive to output | != |
| Max. efficiency | 76 % |
| Average backlash no load | 2 ° |
| Mass inertia | 1.44 gcm² |
| Gearhead length (L1) | 24.2 mm |
| Max. transmittable power (continuous) | 48 W |
| Max. transmittable power (intermittent) | 60 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.15 mm, 10 mm from flange |
| Axial play | 0.02 - 0.2 mm |
| Max. radial load | 180 N, 10 mm from flange |
| Max. axial load (dynamic) | 60 N |
| Max. force for press fits | 60 N |
| Max. continuous input speed | 6000 rpm |
| Max. intermittent input speed | 6000 rpm |
| Recommended temperature range | -15...+80 °C |
| Extended temperature range | 80...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 113 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
