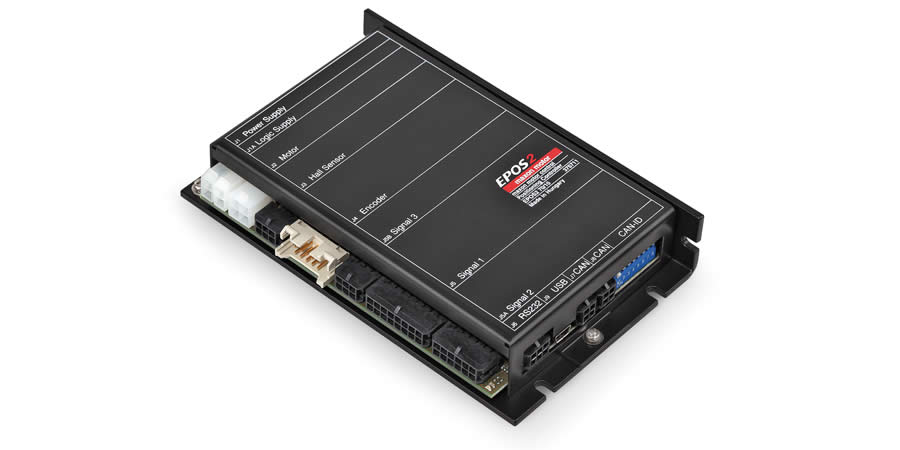

EPOS2 70/10, Digital positioning controller, 10 A, 11 - 70 VDC

Part number 375711

EPOS2 70/10, Digital positioning controller, 10 A, 11 - 70 VDC
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €802.61
5-19 €706.51
20-49 €607.24
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Specifications

Product
Weight 330 g
Motor
DC motors up to 700 W
EC motors up to 700 W
Sensor
Without sensor (DC motors) Yes
Digital incremental encoder (2-channel, differential) Yes
Digital incremental encoder (3-channel, differential) Yes
Digital Hall sensors (EC Motors) Yes
Absolute encoder (SSI) Yes
Analog incremental encoder (2-channel, differential) Yes
Operating modes
Current controller Yes
Speed controller (closed loop) Yes
Position controller Yes
Electrical data
Operating voltage Vcc (min.) 11 V
Operating voltage Vcc (max.) 70 V
Logic supply voltage Vc (min.) optional 11 V
Logic supply voltage Vc (max.) optional 70 V
Max. output voltage (factor * Vcc) 0.9
Max. output current Imax 25 A
Max. time of peak output current Imax 1 s
Continuous output current Icont 10 A
PWM clock frequency of power stage 50 kHz
Sampling rate PI current controller 10 kHz
Sampling rate PI speed controller 1 kHz
Sampling rate PID positioning controller 1 kHz
Max. efficiency 94 %
Max. speed (DC) 100000 rpm
Max. speed (EC; 1 pole pair) block commutation 100000 rpm
Max. speed (EC; 1 pole pair) sinusoidal commutation 25000 rpm
Built-in motor choke per phase 25 µH
Inputs
Hall sensor signals H1, H2, H2
Encoder signals A, A, B, B, I, I\
Max. encoder input frequency 5 MHz
Digital inputs 10
Functionality of digital inputs limit switch, reference switch, general purpose, enable, quickstop, SSI encoder, 2nd incremental encoder, step/direction set value, master encoder, position marker, power stage enable
Analog inputs 2
Resolution, range, circuit 12-bit, 0…+5V, differential
Functionality of analog inputs set value, general purpose
DIP switch 8
Functionality of the DIP switch CAN Node-ID, CAN-Bus Termination
Outputs
Digital outputs 5
Functionality of digital outputs holding brake, general purpose, position compare, ready
Voltage outputs
Hall sensor supply voltage +5 VDC, max. 30 mA
Encoder supply voltage +5 VDC, max. 100 mA
Auxiliary output voltage +5 VDC, max. 150 mA
Voltage output (reference) +5 VDC, (Ro = 1 kOhm)
Interface
RS232 Yes
USB (full speed) Yes
CAN Yes
CANopen Slave
CANopen application layer DS-301
CANopen frameworks DSP-305
CANopen profiles motion control DSP-402
Gateway function RS232-to-CAN Yes
Gateway function USB-to-CAN Yes
Display
Status indicator "Ready" green LED
Status indicator "Error" red LED
Protective functions
Protective functions current limit, overcurrent, excess temperature, undervoltage, overvoltage, voltage transients, short-circuits in the motor cable
Ambient conditions
Temperature – Operation (min.) -10 °C
Temperature – Operation (max.) 45 °C
Temperature – Extended Range +45…+85°C, Derating: -0.25 A/°C
Temperature – Storage (min.) -40 °C
Temperature – Storage (max.) 85 °C
Humidity (non-condensing) (min.) 5 %
Humidity (non-condensing) (max.) 90 %
Mechanical data
Weight 330 g
Dimension (length) 150 mm
Dimension (width) 93 mm
Dimension (height) 27 mm
Mounting Flange for M3 screws
Software
Installation program EPOS Setup
Graphical User Interface EPOS Studio
Operating system Windows 10, 8, 7, Windows XP SP3
Windows DLL for PC 32-/64-bit
PC master IXXAT, Vector, National Instruments, Kvaser, NI-XNET
Programming examples MS Visual C#, MS Visual C++, MS Visual Basic, MS Visual Basic.NET, Borland C++, Borland Delphi, NI LabView, NI LabWindows/CVI
Linux Shared Object Library X86 32-/64-bit, ARMv7
Programming example C++ (Eclipse Project)
IEC 61131-3 library for CAN Master Beckhof, Siemens/Helmholz, VIPA
maxon library for NI SoftMotion National Instruments Compact Rio
Functions
CANopen Profile Position Mode Yes
CANopen Profile Velocity Mode Yes
CANopen Homing Mode Yes
Position Mode Yes
Interpolated Position Mode (PVT) Yes
Velocity mode Yes
Current mode Yes
Master Encoder Mode Yes
Step/Direction Mode Yes
Analog set value Yes
Path generator with sinusoidal/trapezoidal profiles Yes
Position Control Feed Forward Yes
Velocity Control (Feed Forward) Yes
Dual loop position and velocity control Yes
Position Marker / Touch Probe Yes
Quickstop Yes
Enable Yes
Position Compare Yes
Control of holding brakes Yes
Advanced automatic control settings Yes

Description

The EPOS2 70/10 is a modular digital positioning controller. Matched with brushed DC motors with encoder or brushless EC motors with Hall sensors and encoder, from 80 to 700 watts.
