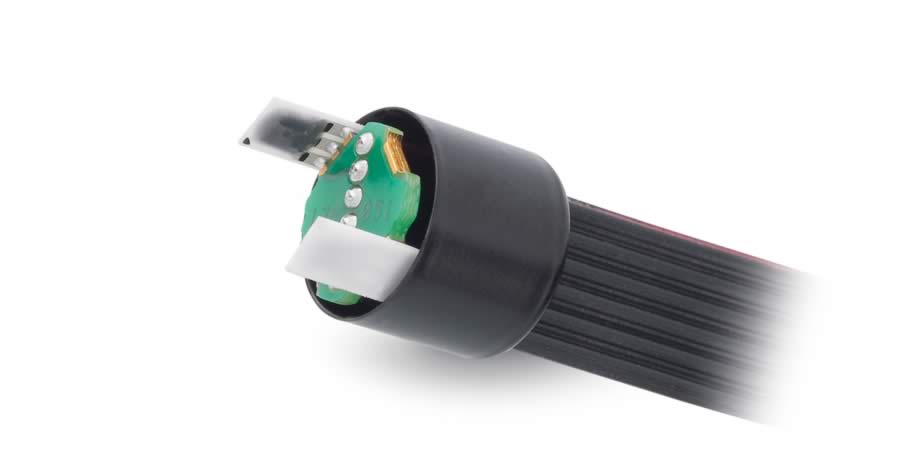

Encoder MEnc 10, 12 CPT, 2 Channels

Part number 138061

Encoder MEnc 10, 12 CPT, 2 Channels

This product can no longer be ordered. Please contact our sales support with the form. Thank you

Specifications

General information
Counts per turn 12
Number of channels 2
Line Driver nein
Max. electrical speed 25000 rpm
Max. mechanical speed 10000 rpm
Technical Data
Supply voltage Vcc 3.8...24 V
Output signal TTL
Driver used logic TTL
Output current per channel max. -40 mA
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Typical current draw at standstill 8 mA
Max. moment of inertia of code wheel 0.03 gcm²
Operating temperature -20...+80 °C

Description

High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
