Encoder ENX 22 MILE, 1024 counts per turn, 2-channel, with line driver

Encoder ENX 22 MILE, 1024 counts per turn, 2-channel, with line driver
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €144.10*
5-19 €116.94*
20-49 €98.73*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 1024
Number of channels 2
Line Driver Yes
Max. length of encoder housing 1.1 mm
Max. electrical speed 56000 rpm
Max. mechanical speed 14000 rpm
Technical Data
Supply voltage Vcc 5.0V ± 10.0%
Output signal CMOS
Output signal Incremental
Output current per channel -4...4 mA
Signal rise time 100 ns
Measurement condition for signal rise time CL=25pF, RL=1kOhm
Signal fall time 100 ns
Measurement condition for signal fall time CL=25pF, RL=1kOhm
Min. state duration 125 ns
Direction of rotation A before B CW
Typical current draw at standstill 15 mA
Max. moment of inertia of code wheel 3.5 gcm²
Operating temperature -40...+100 °C
Product
Weight 8 g

Description

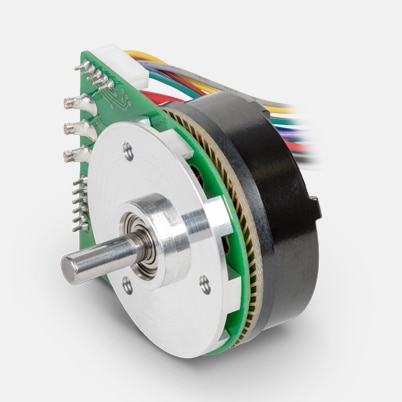

The inductive ENX MILE encoder ideally complements our ECX flat motors and stands out for its high resolution and high accuracy. The encoder with inverse signals is extremely resistant against magnetic and electric fields as well as against soiling. It is integrated directly into the motor.
