Specifications

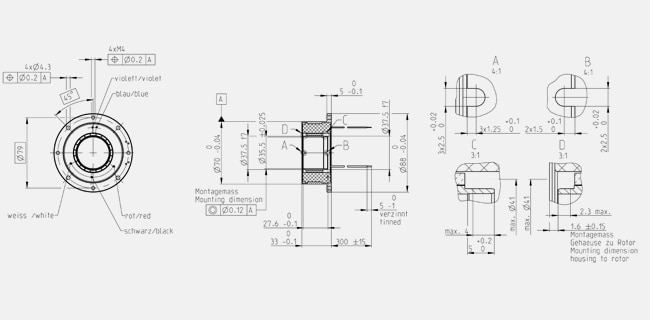

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
48 V |
| No load speed |
2590 rpm |
| No load current |
150 mA |
| Nominal speed |
2170 rpm |
| Nominal torque (max. continuous torque) |
1130 mNm |
| Nominal current (max. continuous current) |
5.87 A |
| Stall torque |
5660 mNm |
| Stall current |
103 A |
| Max. efficiency |
92 % |
| Characteristics |
| Terminal resistance |
0.466 Ω |
| Terminal inductance |
0.779 mH |
| Torque constant |
176 mNm/A |
| Speed constant |
54.2 rpm/V |
| Speed / torque gradient |
0.143 rpm/mNm |
| Mechanical time constant |
0.413 ms |
| Rotor inertia |
275 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
3.42 K/W |
| Thermal resistance winding-housing |
0.207 K/W |
| Thermal time constant winding |
9.1 s |
| Thermal time constant motor |
1250 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+155 °C |
| Mechanical data |
| Max. speed |
5000 rpm |
| Other specifications |
| Number of pole pairs |
10 |
| Number of phases |
3 |
| Product |
| Weight |
524 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description
The EC frameless DT motors are BLDC motor kits with internal-rotor technology. The rotor and stator are delivered separately, without bearings or motor shaft, and are connected only during assembly. The flat design, the high torques, and a lot of space for cable glands allow a high level of integration into your application.
