Specifications

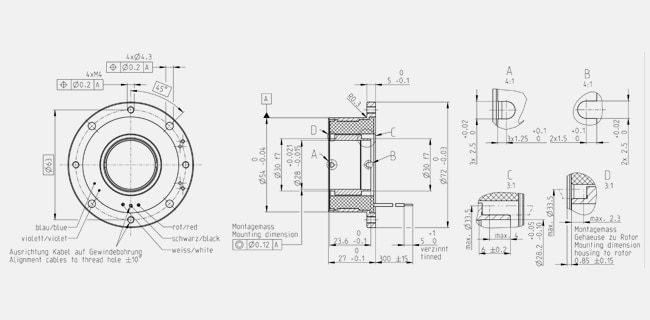

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
48 V |
| No load speed |
4330 rpm |
| No load current |
109 mA |
| Nominal speed |
3700 rpm |
| Nominal torque (max. continuous torque) |
435 mNm |
| Nominal current (max. continuous current) |
3.87 A |
| Stall torque |
2770 mNm |
| Stall current |
64.2 A |
| Max. efficiency |
92 % |
| Characteristics |
| Terminal resistance |
0.748 Ω |
| Terminal inductance |
0.571 mH |
| Torque constant |
105 mNm/A |
| Speed constant |
90.7 rpm/V |
| Speed / torque gradient |
0.644 rpm/mNm |
| Mechanical time constant |
0.666 ms |
| Rotor inertia |
98.8 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
5.02 K/W |
| Thermal resistance winding-housing |
0.412 K/W |
| Thermal time constant winding |
7.57 s |
| Thermal time constant motor |
678 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+155 °C |
| Mechanical data |
| Max. speed |
5000 rpm |
| Other specifications |
| Number of pole pairs |
10 |
| Number of phases |
3 |
| Product |
| Weight |
270 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description

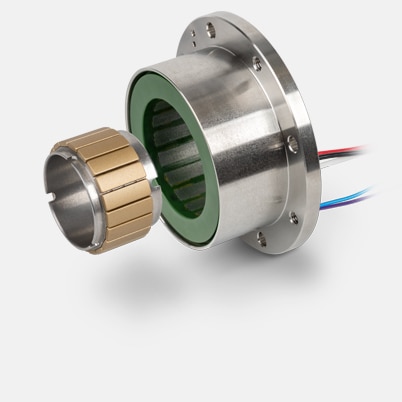

The EC frameless DT motors are BLDC motor kits with internal-rotor technology. The rotor and stator are delivered separately, without bearings or motor shaft, and are connected only during assembly. The flat design, the high torques, and a lot of space for cable glands allow a high level of integration into your application.
