Specifications

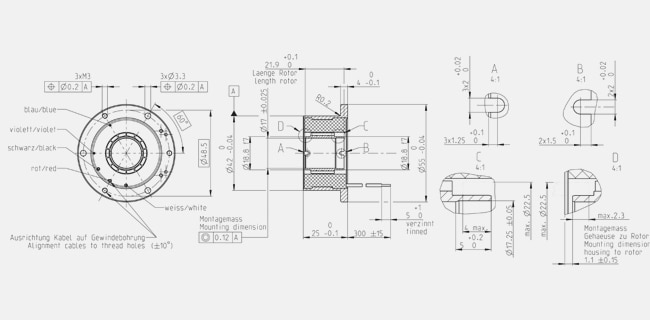

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
24 V |
| No load speed |
6290 rpm |
| No load current |
147 mA |
| Nominal speed |
5110 rpm |
| Nominal torque (max. continuous torque) |
186 mNm |
| Nominal current (max. continuous current) |
4.69 A |
| Stall torque |
1150 mNm |
| Stall current |
63.8 A |
| Max. efficiency |
91 % |
| Characteristics |
| Terminal resistance |
0.376 Ω |
| Terminal inductance |
0.312 mH |
| Torque constant |
36.2 mNm/A |
| Speed constant |
264 rpm/V |
| Speed / torque gradient |
2.74 rpm/mNm |
| Mechanical time constant |
0.583 ms |
| Rotor inertia |
20.3 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
6.87 K/W |
| Thermal resistance winding-housing |
0.33 K/W |
| Thermal time constant winding |
3.38 s |
| Thermal time constant motor |
574 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+155 °C |
| Mechanical data |
| Max. speed |
15000 rpm |
| Other specifications |
| Number of pole pairs |
7 |
| Number of phases |
3 |
| Product |
| Weight |
170 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description

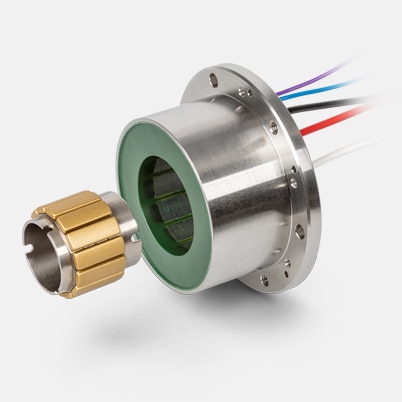

The EC frameless DT motors are BLDC motor kits with internal-rotor technology. The rotor and stator are delivered separately, without bearings or motor shaft, and are connected only during assembly. The flat design, the high torques, and a lot of space for cable glands allow a high level of integration into your application.
