| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €228.73 |
| 5-19 | €198.94 | |
| 20-49 | €165.47 | |
| from 50 | On request |
NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

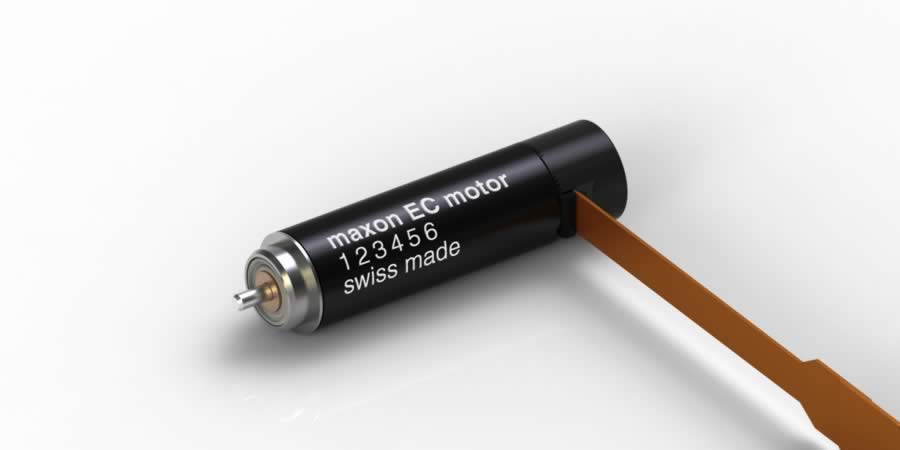

Specifications
Technical illustrations

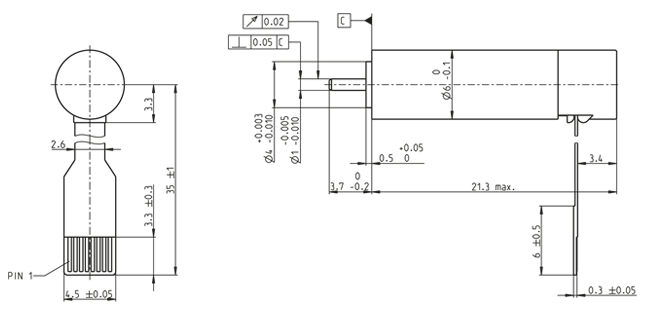

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 12 V |
| No load speed | 31800 rpm |
| No load current | 25.1 mA |
| Nominal speed | 9790 rpm |
| Nominal torque (max. continuous torque) | 0.261 mNm |
| Nominal current (max. continuous current) | 0.109 A |
| Stall torque | 0.439 mNm |
| Stall current | 0.147 A |
| Max. efficiency | 36 % |
| Characteristics | |
| Terminal resistance | 81.5 Ω |
| Terminal inductance | 0.602 mH |
| Torque constant | 2.98 mNm/A |
| Speed constant | 3200 rpm/V |
| Speed / torque gradient | 87400 rpm/mNm |
| Mechanical time constant | 4.58 ms |
| Rotor inertia | 0.005 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 64 K/W |
| Thermal resistance winding-housing | 9.7 K/W |
| Thermal time constant winding | 0.923 s |
| Thermal time constant motor | 68.5 s |
| Ambient temperature | -20...+100 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 100000 rpm |
| Axial play | 0 mm, at radial load < 0.15 N |
| 0.06 mm, at radial load > 0.15 N | |
| Max. axial load (dynamic) | 0.1 N |
| Max. force for press fits (static) | 10 N |
| Max. radial load | 2 N, 2 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 3 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
