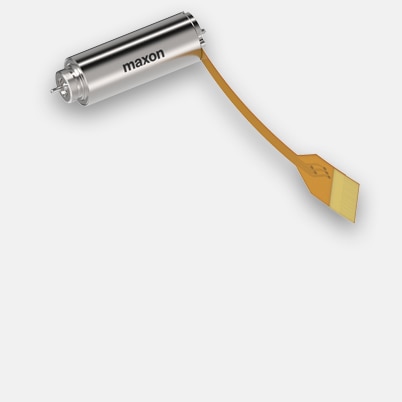

EC 10 Ø10 mm, brushless, 8 Watt, with Hall sensors

Part number 315170

EC 10 Ø10 mm, brushless, 8 Watt, with Hall sensors
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €311.15
5-19 €264.10
20-49 €213.89
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Specifications

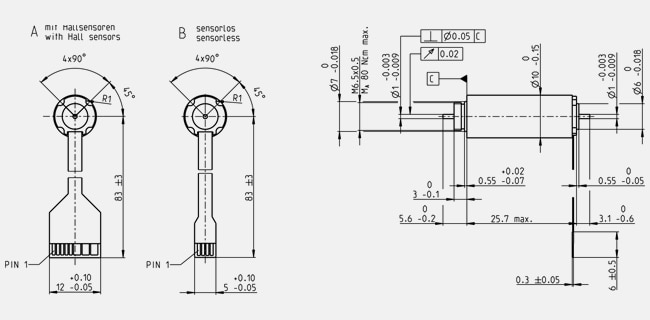

Technical illustrations

Information: Drawings are not to scale.

Values at nominal voltage
Nominal voltage 6 V
No load speed 49200 rpm
No load current 160 mA
Nominal speed 41700 rpm
Nominal torque (max. continuous torque) 1.74 mNm
Nominal current (max. continuous current) 1.66 A
Stall torque 12 mNm
Stall current 10.4 A
Max. efficiency 77 %
Characteristics
Terminal resistance 0.575 Ω
Terminal inductance 0.00998 mH
Torque constant 1.15 mNm/A
Speed constant 8340 rpm/V
Speed / torque gradient 4180 rpm/mNm
Mechanical time constant 3.03 ms
Rotor inertia 0.0691 gcm²
Thermal data
Thermal resistance housing-ambient 39.8 K/W
Thermal resistance winding-housing 5.1 K/W
Thermal time constant winding 1.51 s
Thermal time constant motor 221 s
Ambient temperature -40...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 65000 rpm
Axial play 0 mm, at radial load < 0.2 N
0.14 mm, at radial load > 0.2 N
Max. axial load (dynamic) 0.16 N
Max. force for press fits (static) 12 N
(static, shaft supported) 250 N
Max. radial load 2 N, 5 mm from flange
Other specifications
Number of pole pairs 1
Number of phases 3
Number of autoclave cycles 0
Product
Weight 13 g
  • Operating Range

    Continuous operation range


    Short term operation range


Description

The electronically commutated EC motors are characterized especially by their favorable torque characteristics, high power, extremely broad speed range and, of course, by their unsurpassed service life.
