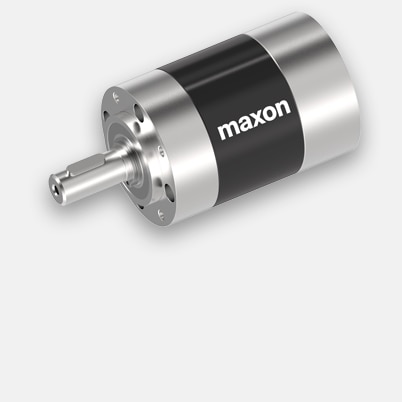

Planetary Gearhead GP 62 A Ø62 mm, 8 - 50 Nm

Part number 110501

Planetary Gearhead GP 62 A Ø62 mm, 8 - 50 Nm

This product can no longer be ordered. Please contact our sales support with the form. Thank you

Specifications

Technical illustrations

Information: Drawings are not to scale.

General information
Gearhead type GP
Outer diameter 62 mm
Version Standard version
Gearhead Data
Reduction 19 : 1
Absolute reduction 3591/187
Max. motor shaft diameter 8 mm
Number of stages 2
Max. continuous torque 25 Nm
Max. intermittent torque 37 Nm
Direction of rotation, drive to output =
Max. efficiency 75 %
Average backlash no load 1.5 °
Mass inertia 100 gcm²
Gearhead length (L1) 88.3 mm
Max. transmittable power (continuous) 410 W
Max. transmittable power (intermittent) 610 W
Technical Data
Radial play max. 0.08 mm, 7 mm from flange
Axial play max. 1 mm
Max. radial load 360 N, 24 mm from flange
Max. axial load (dynamic) 120 N
Max. force for press fits 1000 N
Max. continuous input speed 3000 rpm
Max. intermittent input speed 3000 rpm
Recommended temperature range -30...+140 °C
Number of autoclave cycles 0
Product
Weight 1200 g

Description

Precision spur- and planetary gearheads matched to maxon motors. Gears are advantageously adapted directly to the desired motors in the delivery plant. The motor pinion is the input gearweel for the first stage and is rigidly affixed to the motor shaft.
