This product can no longer be ordered. Please contact our sales support with the form. Thank you
Specifications
Product | |
Weight | 180 g |
Motor | |
DC motors up to | 120 W |
EC motors up to | 120 W |
Sensor | |
Without sensor (DC motors) | Yes |
Digital incremental encoder (2-channel, differential) | Yes |
Digital incremental encoder (3-channel, differential) | Yes |
Digital Hall sensors (EC motors) | Yes |
Operating modes | |
Current controller | Yes |
Speed controller (closed loop) | Yes |
Position controller | Yes |
Electrical data | |
Operating voltage Vcc (min.) | 11 V |
Operating voltage Vcc (max.) | 24 V |
Logic supply voltage Vc (min.) optional | 11 V |
Logic supply voltage Vc (max.) optional | 24 V |
Max. output voltage (factor * Vcc) | 0.9 |
Max. output current Imax | 10 A |
Max. time of peak output current Imax | 1 s |
Continuous output current Icont | 5 A |
PWM clock frequency of power stage | 50 kHz |
Sampling rate PI current controller | 10 kHz |
Sampling rate PI speed controller | 1 kHz |
Sampling rate PID positioning controller | 1 kHz |
Max. efficiency | 92 % |
Max. speed (DC) | 100000 rpm |
Max. speed (EC; 1 pole pair) block commutation | 100000 rpm |
Max. speed (EC; 1 pole pair) sinusoidal commutation | 25000 rpm |
Built-in motor choke per phase | 15 µH |
Inputs | |
Hall sensor signals | H1, H2, H3 |
Encoder signals | A, A, B, B, I, I\ |
Max. encoder input frequency | 5 MHz |
Digital inputs | 6 |
Functionality of digital inputs | limit switch, reference switch, general purpose, enable, quickstop, step/direction set value, master encoder, position marker |
Analog inputs | 2 |
Resolution, range, circuit | 12-bit, 0…+5V |
Functionality of analog inputs | set value, general purpose |
DIP switch | 10 |
Functionality of the DIP switch | CAN Node-ID, CAN-Bus Termination CAN-S, CAN-Bus Termination CAN-M, Autobitrate CAN-M |
Outputs | |
Digital outputs | 4 |
Functionality of digital outputs | holding brake, general purpose, position compare, ready |
Voltage outputs | |
Hall sensor supply voltage | +5 VDC, max. 30 mA |
Encoder supply voltage | +5 VDC, max. 100 mA |
Auxiliary output voltage | +VCC , max. 1300 mA |
Interface | |
RS232 | Yes |
USB (full speed) | Yes |
CAN | Yes |
CANopen | Master |
CANopen application layer | DS-301 |
CANopen frameworks | DSP-305, DS-302 |
CANopen profiles motion control | DSP-402 |
CANopen profile for IEC 61131-3 programmable device | DSP-405 |
Gateway function RS232-to-CAN | Yes |
Gateway function USB-to-CAN | Yes |
Display | |
Status indicator "Ready" | green LED / blue LED (programm status) |
Status indicator "Error" | red LED |
Protective functions | |
Protective functions | current limit, overcurrent, excess temperature, undervoltage, overvoltage, voltage transients, short-circuits in the motor cable |
Ambient conditions | |
Temperature – Operation (min.) | -10 °C |
Temperature – Operation (max.) | 55 °C |
Temperature – Extended Range | +55…+83°C, Derating: -0.179 A/°C |
Temperature – Storage (min.) | -40 °C |
Temperature – Storage (max.) | 85 °C |
Humidity (non-condensing) (min.) | 5 % |
Humidity (non-condensing) (max.) | 90 % |
Mechanical data | |
Weight | 180 g |
Dimension (length) | 105 mm |
Dimension (width) | 83 mm |
Dimension (height) | 24 mm |
Mounting | Flange for M3 screws |
Software | |
Installation program | EPOS Setup |
Graphical User Interface | EPOS Studio (incl. OpenPCS) |
Operating system | Windows 10, 8, 7, Windows XP SP3 |
Windows DLL for PC | 32-/64-bit |
PC master | IXXAT, Vector, National Instruments, Kvaser, NI-XNET |
Programming examples | MS Visual C#, MS Visual C++, MS Visual Basic, MS Visual Basic.NET, MS Visual Basic.NET, Borland Delphi, NI LabView |
IEC 61131-3 library for CAN Master | IEC 61131-3 Standard-, Motion Control-, Maxon Utility-, CANopen function blocks and user libraries. |
Functions | |
CANopen Profile Position Mode | Yes |
CANopen Profile Velocity Mode | Yes |
CANopen Homing Mode | Yes |
Position Mode | Yes |
Interpolated Position Mode (PVT) | Yes |
Velocity mode | Yes |
Current mode | Yes |
Master Encoder Mode | Yes |
Step/Direction Mode | Yes |
Analog set value | Yes |
Path generator with sinusoidal/trapezoidal profiles | Yes |
Position Control Feed Forward | Yes |
Velocity Control (Feed Forward) | Yes |
Position Marker / Touch Probe | Yes |
Quickstop | Yes |
Enable | Yes |
Position Compare | Yes |
Control of holding brakes | Yes |
Advanced automatic control settings | Yes |
Description

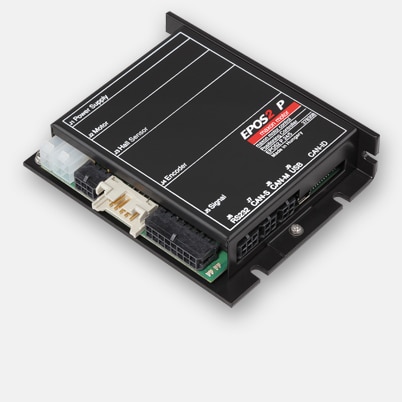

The EPOS2 P 24/5 is a freely programmable positioning controller according IEC 61131-3. Matched with brushed DC motors with encoder or brushless EC motors with Hall sensors and encoder, from 5 to 120 watts.Downloads
CAD-Files (STEP)
Software/firmware
-
English
- EPOS IDX Setup Release Notes (english, PDF 581 KB) Version Mai 2022
- EPOS2 P Command Library Documentation (english, PDF 6 MB) Version May 2016
- EPOS2 P Windows DLL (english, ZIP 34 MB) Version 1.3.1.0
- EPOS2 P .Net Library (english, ZIP 17 MB) Version 1.3.1.0
- EPOS2 P LabVIEW Instrument Driver (english, ZIP 17 MB) Version 1.3.1.0
- EPOS2 P Examples (english, ZIP 16 MB) Version 1.2
- OpenPCS Licence Update (english, ZIP 2 KB) Version April 2014
- Setup EPOS, IDX - Studio 3.7 (ZIP -1 bytes) Version 36
- EPOS USB Driver Installation (ZIP 4 MB) Version 2.12.28.0
CAD-Files (DXF, STP,....)
Catalog page
Manuals
-
English
- EPOS2 P Firmware Specification (english, ZIP 5 MB) Version May 2016
- EPOS2 P 24/5 Getting Started (english, PDF 4 MB) Version May 2016
- EPOS2 P 24/5 Hardware Reference (english, PDF 2 MB) Version May 2016
- EPOS2 P 24/5 Cable Starting Set (english, PDF 2 MB) Version January 2025
- EPOS2 Application Notes Collection (english, PDF 18 MB) Version November 2017
- EPOS2 P Programming Reference (english, PDF 11 MB) Version May 2016
- EPOS2 P Supervisory Control Reference (english, PDF 5 MB) Version May 2016
