This product can no longer be ordered. Please contact our sales support with the form. Thank you
Specifications
| Product | |
| Weight | 20 g |
Description

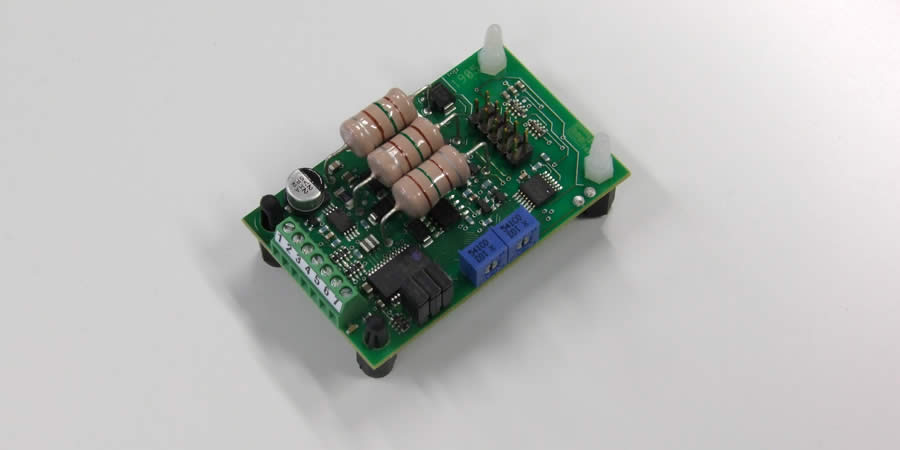

The DEC 24/1 (Digital EC Controller) is a 1-quadrant amplifier for controlling electronically commutated (brushless) DC motors with Hall sensors with a maximum output of 24 W.- Digital speed control
- Maximum speed: 120 000 rpm (Motor with 1 pole pair)
- Operation as speed controller or open loop speed control
- /Brake, Direction and /Disable input
- Status indicator with green LED
- Set value input through built-in potentiometer (several speed ranges can be selected) or analogue set value input (0 … 5 V)
- Adjustable maximum current limit
- Integrated chokes for very low-impedant motors to operate at low loss
- Current limit permits temporary twice the continuous current
- Attachable adapter boards enable all kinds of maxon micromotors to be used
- Speed can be monitored through the speed monitor output
