Details

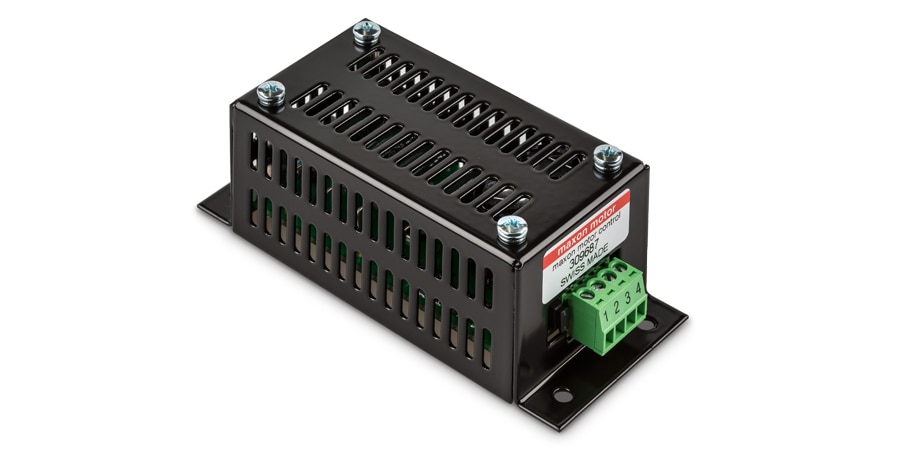

DSR 50/5

Part number 309687

DSR 50/5
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €113.91
5-19 €106.18
20-49 €100.00
from 50 On request

Specifications

Product
Weight 75 g

Description

Shunt regulator to limit the supply voltage of amplifiers

Operating voltage: 12...50 V
Threshold voltage: 27 V or 56 V (selectable)
Buffer capacity: 940 µF
Short-term power loss: 300 W
Maximum continuous power loss: 10 W
Connections: 4-pole pluggable screw terminals (pitch 3.5 mm) for AWG 26 - 16
Dimensions: 94 x 41 x 35 mm
