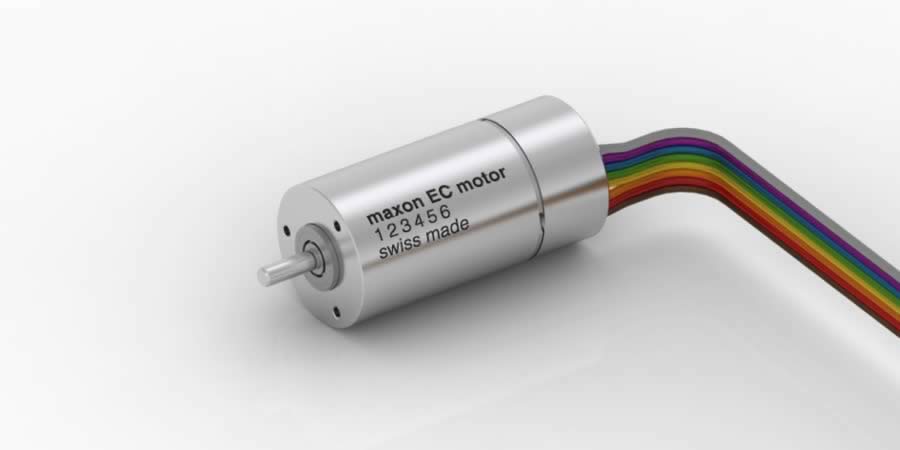

| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €239.26 |
| 5-19 | €205.47 | |
| 20-49 | €168.42 | |
| from 50 | On request |
NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

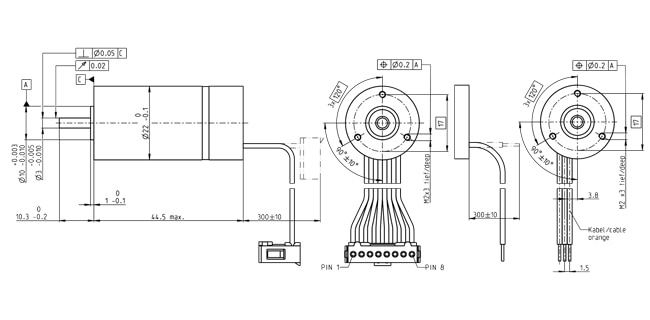

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 48 V |
| No load speed | 34200 rpm |
| No load current | 69.3 mA |
| Nominal speed | 30900 rpm |
| Nominal torque (max. continuous torque) | 20.1 mNm |
| Nominal current (max. continuous current) | 1.56 A |
| Stall torque | 237 mNm |
| Stall current | 17.7 A |
| Max. efficiency | 88 % |
| Characteristics | |
| Terminal resistance | 2.71 Ω |
| Terminal inductance | 0.231 mH |
| Torque constant | 13.3 mNm/A |
| Speed constant | 716 rpm/V |
| Speed / torque gradient | 145 rpm/mNm |
| Mechanical time constant | 3.64 ms |
| Rotor inertia | 2.39 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 10 K/W |
| Thermal resistance winding-housing | 2 K/W |
| Thermal time constant winding | 5.07 s |
| Thermal time constant motor | 278 s |
| Ambient temperature | -20...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 60000 rpm |
| Axial play | 0 mm, at radial load < 5 N |
| 0.14 mm, at radial load > 5 N | |
| Max. axial load (dynamic) | 4 N |
| Max. force for press fits (static) | 45 N |
| (static, shaft supported) | 250 N |
| Max. radial load | 16 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 85 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
