Specifications
Technical illustrations

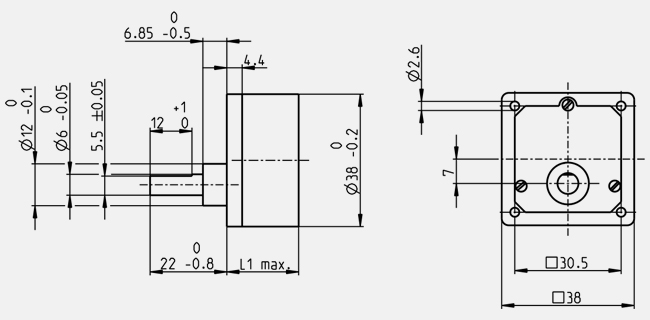

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GS |
| Outer diameter | 38 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 60 : 1 |
| Absolute reduction | 60/1 |
| Max. motor shaft diameter | 3 mm |
| Number of stages | 4 |
| Max. continuous torque | 0.3 Nm |
| Max. intermittent torque | 0.9 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 66 % |
| Average backlash no load | 2 ° |
| Mass inertia | 0.3 gcm² |
| Gearhead length (L1) | 25.6 mm |
| Max. transmittable power (continuous) | 2.6 W |
| Max. transmittable power (intermittent) | 7.9 W |
| Technical Data | |
| Bearing at output | sleeve bearing |
| Radial play | max. 0.1 mm, 12 mm from flange |
| Axial play | 0.03 - 0.2 mm |
| Max. radial load | 50 N, 12 mm from flange |
| Max. axial load (dynamic) | 30 N |
| Max. force for press fits | 500 N |
| Max. continuous input speed | 5000 rpm |
| Max. intermittent input speed | 5000 rpm |
| Recommended temperature range | -5...+80 °C |
| Extended temperature range | 80...+80 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 65 g |
-
