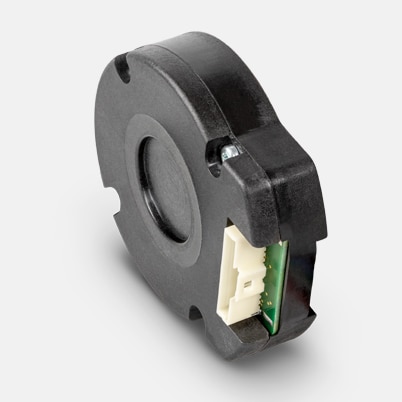

TSX 40 RIO encoder, 32,768 counts per turn/19-bit BiSS-C, axial cable outlet | Optical – ensure clean environment

Part number 850587

TSX 40 RIO encoder, 32,768 counts per turn/19-bit BiSS-C, axial cable outlet
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €236.73
5-19 €198.63
20-49 €171.99
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Steps per turn 524288
Resolution 19 bit single turn
Counts per turn 32768
Number of channels 3
Line Driver RS422
Max. length of encoder housing 9.5 mm
Max. electrical speed 12200 rpm
Max. mechanical speed 42000 rpm
Technical Data
Data encoding binary
Min. clock frequency 0.1 MHz
Max. clock frequency 10 MHz
Timeout 25 us
Supply voltage Vcc 5.0V ± 10.0%
Output signal EIA RS 422
Output signal INC + BISS
Output current per channel -50...50 mA
Signal rise time 15 ns
Measurement condition for signal rise time CL=30pF, RL=50Ohm
Signal fall time 15 ns
Measurement condition for signal fall time CL=30pF, RL=50Ohm
Min. state duration 38 ns
Direction of rotation A before B CW
Index position A low and B low
Index synchronized to AB Yes
Typical current draw at standstill 60 mA
Max. moment of inertia of code wheel 3.6 gcm²
Operating temperature -40...+105 °C
Orientation of encoder output to motor flange 0 °
Product
Weight 15 g

Description

The TSX 40 RIO encoder is both an optical incremental encoder and an absolute encoder. With its high resolution, it is ideally suited as an incremental encoder and as an absolute encoder with BiSS-C or SSI interface for precise positioning tasks.
