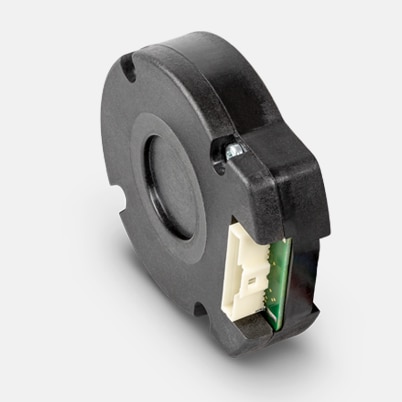

TSX 40 MAG encoder, 2048 counts per turn, axial cable outlet | with closed housing

Part number 850476

TSX 40 MAG encoder, 2048 counts per turn, axial cable outlet
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €118.94
5-19 €101.47
20-49 €83.79
from 50 On request

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 2048
Number of channels 2
Line Driver RS422
Max. electrical speed 12500 rpm
Max. mechanical speed 12500 rpm
Technical Data
Supply voltage Vcc 5.0V ± 10.0%
Output signal EIA RS 422
Output signal Incremental
Output current per channel -50...50 mA
Signal rise time 10 ns
Measurement condition for signal rise time CL = 50pF
Signal fall time 10 ns
Measurement condition for signal fall time CL = 50pF
Direction of rotation A before B CW
Typical current draw at standstill 18 mA
Max. moment of inertia of code wheel 7.6 gcm²
Operating temperature -40...+105 °C
Orientation of encoder output to motor flange 90 °

Description

The TSX 40 MAG encoder is an optical incremental encoder with an RS422 output driver. As an encoder attachment, it is mounted to maxon motors at the factory in a plastic housing with a radial or axial plug.
