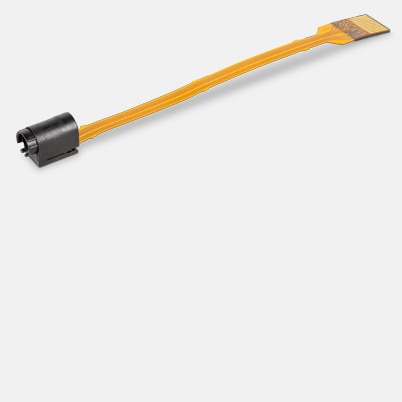

Encoder ENX 4 MAG, 1-256 cpt, 3-channel

Encoder ENX 4 MAG, 1-256 cpt, 3-channel
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €32.42*
5-19 €25.26*
20-49 €20.63*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 256
Number of channels 3
Line Driver No
Max. length of encoder housing 2.7 mm
Max. electrical speed 100000 rpm
Max. mechanical speed 100000 rpm
Technical Data
Supply voltage Vcc 3.3V ± 10.0%
Output signal CMOS
Output signal Incremental
Driver used logic Single Ended, CMOS
Output current per channel -4...4 mA
Signal rise time 10 ns
Measurement condition for signal rise time CL=25pF, RL=1kOhm
Signal fall time 10 ns
Measurement condition for signal fall time CL=25pF, RL=1kOhm
Direction of rotation A before B CW
Index position A low and B low
Index synchronized to AB Yes
Typical current draw at standstill 13 mA
Max. moment of inertia of code wheel 0.0017 gcm²
Operating temperature -40...+100 °C
Orientation of encoder output to motor flange 0 °
Product
Weight 5 g

Description

maxon ENX encoders feature a robust design and high signal quality. The ENX MAG is a compact 3-channel encoder. A resolution of up to 256 counts per turn can be programmed at the factory. Equipped with a practical flexprint supply cable, the ENX MAG is ideal for a wide variety of positioning and speed control applications. The counts per turn can be configured online.
