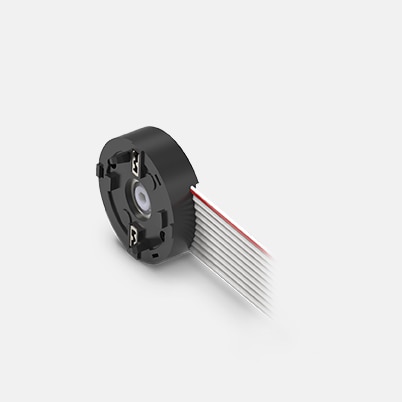

Encoder ENX 22 IMR, 512 cpt, 3 channel

Encoder ENX 22 IMR, 512 cpt, 3 channel
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €127.05*
5-19 €110.84*
20-49 €94.52*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 512
Number of channels 3
Line Driver RS422
Max. electrical speed 37500 rpm
Max. mechanical speed 37500 rpm
Technical Data
Supply voltage Vcc 5.0V ± 10.0%
Output signal EIA RS 422
Output signal Incremental
Output current per channel -20...20 mA
Measurement condition for signal rise time CL=10pF, RL=120Ohm
Measurement condition for signal fall time CL=10pF, RL=120Ohm
Min. state duration 20 ns
Direction of rotation A before B CW
Index position A low and B low
Index synchronized to AB Yes
Typical current draw at standstill 13 mA
Max. moment of inertia of code wheel 0.09 gcm²
Operating temperature -20...+85 °C
Product
Weight 9 g

Description

maxon ENX encoders feature a robust design and high signal quality. The ENX IMR is a compact incremental encoder with up to 1024 counts per turn. It is available in various sizes, as a differential 2- or 3-channel encoder, and in combination with diverse DC motors. In the models with smaller diameters, the motor lines are integrated into the radially arranged ribbon or flexprint cables. The ENX IMR encoder is ideal for a multitude of control applications.
