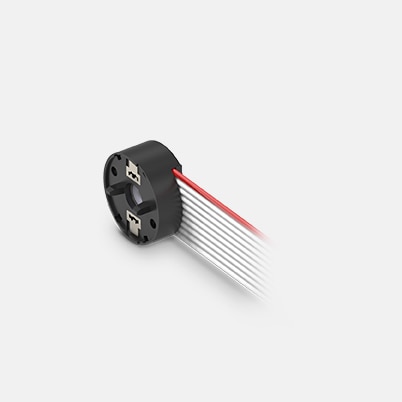

ENX 16 IMR encoder, 512 counts, 3-channel

Part number 870691

ENX 16 IMR encoder, 512 counts, 3-channel
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €127.15
5-19 €110.94
20-49 €94.52
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 512
Number of channels 3
Line Driver RS422
Max. electrical speed 37500 rpm
Max. mechanical speed 37500 rpm
Technical Data
Supply voltage Vcc 5.0V ± 10.0%
Output signal EIA RS 422
Output signal Incremental
Output current per channel -20...20 mA
Direction of rotation A before B CW
Index synchronized to AB Yes
Typical current draw at standstill 13 mA
Max. moment of inertia of code wheel 0.09 gcm²
Operating temperature -20...+85 °C
Product
Weight 7 g

Description

maxon ENX encoders feature a robust design and high signal quality. The ENX IMR is a compact incremental encoder with up to 1024 counts per turn. It is available in various sizes, as a differential 2- or 3-channel encoder, and in combination with diverse DC motors. In the models with smaller diameters, the motor lines are integrated into the radially arranged ribbon or flexprint cables. The ENX IMR encoder is ideal for a multitude of control applications.
