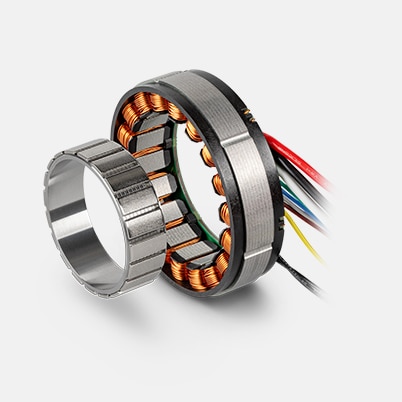

EC frameless HT 76 S, Ø76 mm, brushless, 340 W, with Hall sensors | High Torque

Part number 934887

EC frameless HT 76 S, Ø76 mm, brushless, 340 W, with Hall sensors

For more information, please contact our sales support with the request form. Thank you

Specifications

Values at nominal voltage
Nominal voltage 48 V
No load speed 4130 rpm
No load current 286 mA
Nominal speed 3330 rpm
Nominal torque (max. continuous torque) 883 mNm
Nominal current (max. continuous current) 7.08 A
Stall torque 4380 mNm
Stall current 145 A
Max. efficiency 92 %
Characteristics
Terminal resistance 0.331 Ω
Terminal inductance 0.57 mH
Torque constant 110 mNm/A
Speed constant 86.8 rpm/V
Speed / torque gradient 0.261 rpm/mNm
Mechanical time constant 0.821 ms
Rotor inertia 300 gcm²
Thermal data
Thermal resistance housing-ambient 1.62 K/W
Thermal resistance winding-housing 1.76 K/W
Thermal time constant winding 55.7 s
Thermal time constant motor 1420 s
Ambient temperature -40...+100 °C
Max. winding temperature +155 °C
Mechanical data
Max. speed 7000 rpm
Other specifications
Number of pole pairs 10
Number of phases 3

Description

The EC frameless HT motor range provides high torque in a compact and light frameless design and is a versatile and cost-efficient solution. The short axial length enables very compact system designs, while the optimized electromagnetic layout delivers minimal cogging torque and smooth, precise motion in a wide variety of applications.
