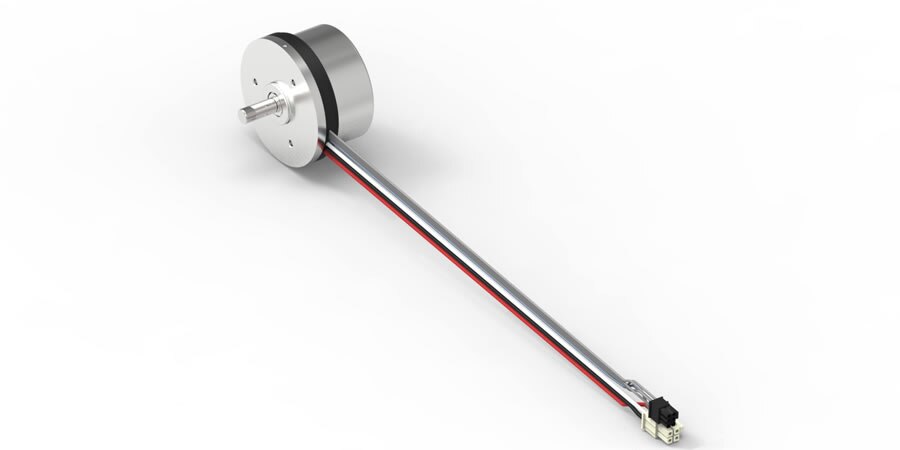

EC 60 flat Ø60 mm, brushless, 100 Watt, without cover

Part number 412823

EC 60 flat Ø60 mm, brushless, 100 Watt, without cover
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €181.09
5-19 €159.09
20-49 €133.09
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Specifications

Technical illustrations

Information: Drawings are not to scale.

Values at nominal voltage
Nominal voltage 12 V
No load speed 3710 rpm
No load current 671 mA
Nominal speed 3170 rpm
Nominal torque (max. continuous torque) 279 mNm
Nominal current (max. continuous current) 9.25 A
Stall torque 2850 mNm
Stall current 93.5 A
Max. efficiency 84 %
Characteristics
Terminal resistance 0.128 Ω
Terminal inductance 0.062 mH
Torque constant 30.5 mNm/A
Speed constant 313 rpm/V
Speed / torque gradient 1.32 rpm/mNm
Mechanical time constant 16.7 ms
Rotor inertia 1210 gcm²
Thermal data
Thermal resistance housing-ambient 2.7 K/W
Thermal resistance winding-housing 3.8 K/W
Thermal time constant winding 24.5 s
Thermal time constant motor 97.3 s
Ambient temperature -40...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 6000 rpm
Axial play 0.14 mm
Max. axial load (dynamic) 12 N
Max. force for press fits (static) 170 N
(static, shaft supported) 8000 N
Max. radial load 110 N, 5 mm from flange
Other specifications
Number of pole pairs 7
Number of phases 3
Number of autoclave cycles 0
Product
Weight 470 g

Description

Thanks to their flat design, the brushless EC flat motors are exactly the right drive for many applications. The well-conceived, simple engineering allows mainly automated production which results in a favorable price.
