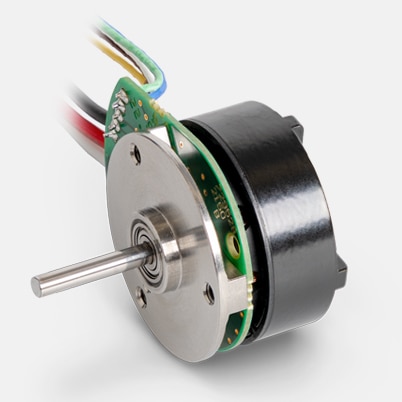

ECX FLAT 22 S, Ø22 mm, brushless, with Hall sensors | High Torque
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €131.05* |
| 5-19 | €102.63* | |
| 20-49 | €80.73* | |
| from 50 | On request |
Specifications
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 12600 rpm |
| No load current | 55.7 mA |
| Nominal speed | 9650 rpm |
| Nominal torque (max. continuous torque) | 15 mNm |
| Nominal current (max. continuous current) | 0.823 A |
| Stall torque | 63.1 mNm |
| Stall current | 5.08 A |
| Max. efficiency | 81 % |
| Characteristics | |
| Terminal resistance | 4.73 Ω |
| Terminal inductance | 0.706 mH |
| Torque constant | 17.9 mNm/A |
| Speed constant | 533 rpm/V |
| Speed / torque gradient | 141 rpm/mNm |
| Mechanical time constant | 7.13 ms |
| Rotor inertia | 4.84 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 9.63 K/W |
| Thermal resistance winding-housing | 12.6 K/W |
| Thermal time constant winding | 0.853 s |
| Thermal time constant motor | 23 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Max. speed | 15000 rpm |
| Axial play | 0 mm, at radial load < 1.5 N |
| 0.14 mm, at radial load > 1.5 N | |
| Radial play | 0 mm |
| Max. axial load (dynamic) | 1.8 N |
| Max. force for press fits (static) | 26 N |
| (static, shaft supported) | 200 N |
| Max. radial load | 3.5 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 6 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 26 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
