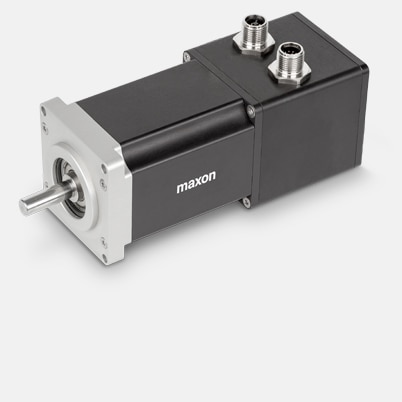

IDX 56 M, □56 mm, brushless, 350 W, with Hall sensors and Encoder EASY INT 1024CPT | Motor with industrial housing

IDX 56 M, □56 mm, brushless, 350 W, with Hall sensors and Encoder EASY INT 1024CPT
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €672.30*
5-19 €564.19*
20-49 €488.72*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Specifications

Technical illustrations

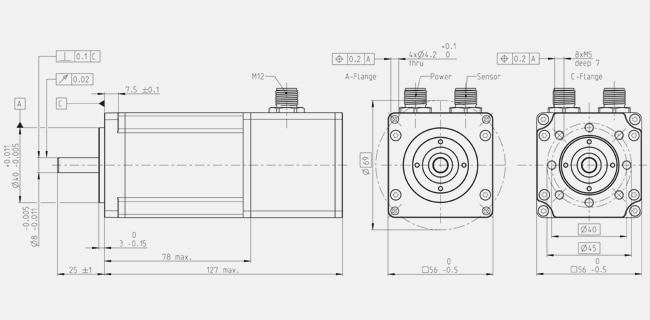

  • Dimension drawing
Values at nominal voltage
Nominal voltage 48 V
No load speed 7270 rpm
No load current 653 mA
Nominal speed 6350 rpm
Nominal torque (max. continuous torque) 563 mNm
Nominal current (max. continuous current) 8.6 A
Stall torque 4800 mNm
Stall current 333 A
Max. efficiency 91 %
Characteristics
Terminal resistance 0.144 Ω
Terminal inductance 0.234 mH
Torque constant 62.4 mNm/A
Speed constant 153 rpm/V
Speed / torque gradient 0.354 rpm/mNm
Mechanical time constant 0.629 ms
Rotor inertia 170 gcm²
Thermal data
Thermal resistance housing-ambient 2.69 K/W
Thermal resistance winding-housing 1.07 K/W
Thermal time constant winding 36.6 s
Thermal time constant motor 1100 s
Ambient temperature -40...+100 °C
Max. winding temperature +155 °C
Mechanical data
Max. speed 8000 rpm
Other specifications
Number of pole pairs 8
Number of phases 3
Product
Weight 815 g

Description

The compact brushless EC-i motor combined with a high-quality sensor in robust industrial housing is ideally suited to demanding speed and positioning tasks. This motor is also available as a drive with integrated positioning and speed controller.
