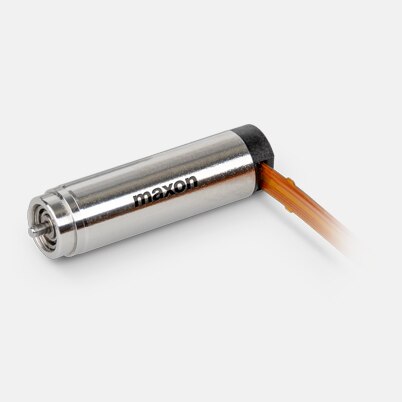

ECX PRIME 6 M Ø6 mm, brushless, with Hall sensors | High power

ECX PRIME 6 M Ø6 mm, brushless, with Hall sensors
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €805.55*
5-19 €629.03*
20-49 €512.62*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Specifications

Values at nominal voltage
Nominal voltage 6 V
No load speed 36300 rpm
No load current 83.8 mA
Nominal speed 29500 rpm
Nominal torque (max. continuous torque) 0.58 mNm
Nominal current (max. continuous current) 0.458 A
Stall torque 3.21 mNm
Stall current 2.12 A
Max. efficiency 65 %
Characteristics
Terminal resistance 2.83 Ω
Terminal inductance 0.0187 mH
Torque constant 1.52 mNm/A
Speed constant 6300 rpm/V
Speed / torque gradient 11800 rpm/mNm
Mechanical time constant 1.47 ms
Rotor inertia 0.0119 gcm²
Thermal data
Thermal resistance housing-ambient 93.9 K/W
Thermal resistance winding-housing 2.98 K/W
Thermal time constant winding 0.358 s
Thermal time constant motor 138 s
Ambient temperature -20...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type Waelzlager
Max. speed 50000 rpm
Axial play 0 mm, at radial load < 0.45 N
0.07 mm, at radial load > 0.45 N
Max. axial load (dynamic) 0.2 N
Max. force for press fits (static) 10 N
(static, shaft supported) 110 N
Max. radial load 2 N, 2 mm from flange
Other specifications
Number of pole pairs 2
Number of phases 3
Number of autoclave cycles 0
Product
Weight 3 g
  • Operating Range

    Continuous operation range


    Short term operation range


Description

The ECX PRIME series encompasses powerful brushless motors with slotless windings. They excel with their excellent torque density, excellent control dynamics, and steady speed-torque characteristic. The ECX PRIME 6 is equipped with Hall sensors and can optionally be supplemented with an encoder or combined with a gearhead. The mechanical interface can be configured. Order your ECX drive online now.
