Beyond combinations. Configure your drive individually.

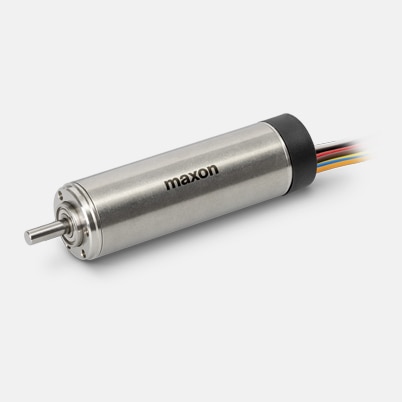

ECX PRIME 16 L Ø16 mm, brushless, with Hall sensors | Sterilizable, ceramic bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €852.82* |
| 5-19 | €665.98* | |
| 20-49 | €542.72* | |
| from 50 | On request |
Specifications
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 17700 rpm |
| No load current | 108 mA |
| Nominal speed | 16100 rpm |
| Nominal torque (max. continuous torque) | 25.3 mNm |
| Nominal current (max. continuous current) | 2.06 A |
| Stall torque | 304 mNm |
| Stall current | 23.5 A |
| Max. efficiency | 87 % |
| Characteristics | |
| Terminal resistance | 1.02 Ω |
| Terminal inductance | 0.0329 mH |
| Torque constant | 12.9 mNm/A |
| Speed constant | 740 rpm/V |
| Speed / torque gradient | 58.5 rpm/mNm |
| Mechanical time constant | 1.27 ms |
| Rotor inertia | 2.08 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 16.7 K/W |
| Thermal resistance winding-housing | 1.65 K/W |
| Thermal time constant winding | 5.82 s |
| Thermal time constant motor | 459 s |
| Ambient temperature | -40...+135 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 40000 rpm |
| Axial play | 0 mm, at radial load < 1 N |
| 0.14 mm, at radial load > 1 N | |
| Max. axial load (dynamic) | 1 N |
| Max. force for press fits (static) | 50 N |
| (static, shaft supported) | 1000 N |
| Other specifications | |
| Number of pole pairs | 2 |
| Number of phases | 3 |
| Number of autoclave cycles | 1000 |
| Product | |
| Weight | 66 g |
-
