ECX FLAT 42 M ∅42 mm, brushless, with Hall sensors | High Torque

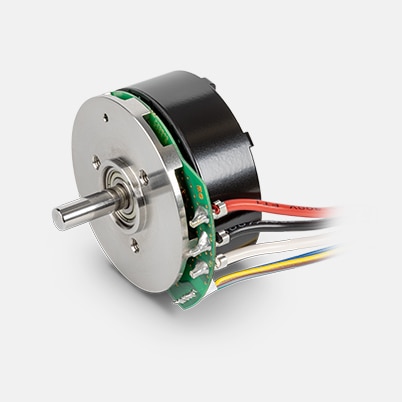

ECX FLAT 42 M ∅42 mm, brushless, with Hall sensors
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €185.47*
5-19 €145.47*
20-49 €113.79*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Specifications

Values at nominal voltage
Nominal voltage 48 V
No load speed 7560 rpm
No load current 163 mA
Nominal speed 6070 rpm
Nominal torque (max. continuous torque) 220 mNm
Nominal current (max. continuous current) 3.52 A
Stall torque 1140 mNm
Stall current 51.4 A
Max. efficiency 84 %
Characteristics
Terminal resistance 0.933 Ω
Terminal inductance 0.698 mH
Torque constant 60.1 mNm/A
Speed constant 159 rpm/V
Speed / torque gradient 2.47 rpm/mNm
Mechanical time constant 2.23 ms
Rotor inertia 86.2 gcm²
Thermal data
Thermal resistance housing-ambient 1.74 K/W
Thermal resistance winding-housing 3.09 K/W
Thermal time constant winding 21.5 s
Thermal time constant motor 96.8 s
Ambient temperature -40...+100 °C
Max. winding temperature +155 °C
Mechanical data
Max. speed 10000 rpm
Other specifications
Number of pole pairs 8
Number of phases 3
Product
Weight 127 g

  • Operating Range

    Continuous operation range


    Short term operation range


Description

The brushless ECX FLAT motor series is optimized for high torques. Innovative winding technology and high-performance magnets give the ECX FLAT a unique ratio of torque to size, making it ideal for applications involving confined spaces.
