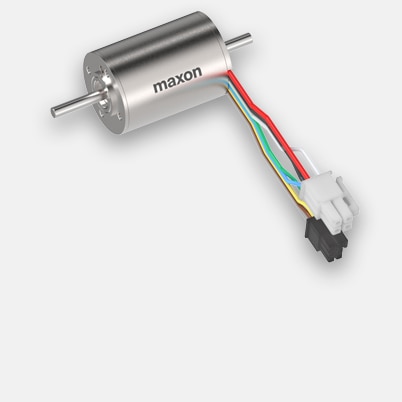

EC-i 30 Ø30 mm, brushless, 30 W, with Hall sensors
Part number 539473
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €218.20 |
| 5-19 | €186.10 | |
| 20-49 | €153.78 | |
| from 50 | On request |
Specifications
Technical illustrations

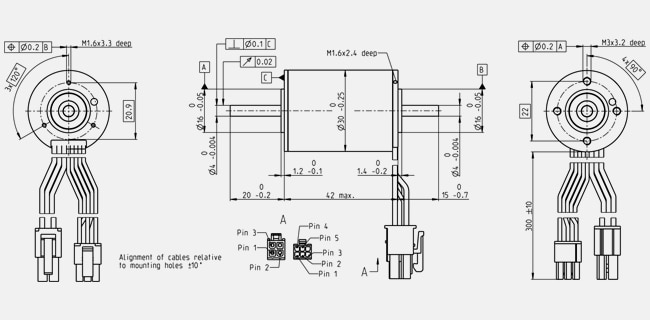

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 9180 rpm |
| No load current | 112 mA |
| Nominal speed | 7760 rpm |
| Nominal torque (max. continuous torque) | 36.1 mNm |
| Nominal current (max. continuous current) | 1.49 A |
| Stall torque | 296 mNm |
| Stall current | 14.1 A |
| Max. efficiency | 83 % |
| Characteristics | |
| Terminal resistance | 1.71 Ω |
| Terminal inductance | 1.12 mH |
| Torque constant | 24.6 mNm/A |
| Speed constant | 387 rpm/V |
| Speed / torque gradient | 26.8 rpm/mNm |
| Mechanical time constant | 2.05 ms |
| Rotor inertia | 7.3 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 11.1 K/W |
| Thermal resistance winding-housing | 3.75 K/W |
| Thermal time constant winding | 30.1 s |
| Thermal time constant motor | 849 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 15000 rpm |
| Axial play | 0 mm, at radial load < 9 N |
| 0.14 mm, at radial load > 9 N | |
| Max. axial load (dynamic) | 5 N |
| Max. force for press fits (static) | 98 N |
| (static, shaft supported) | 2000 N |
| Max. radial load | 25 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 2 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 153 g |
-
