NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

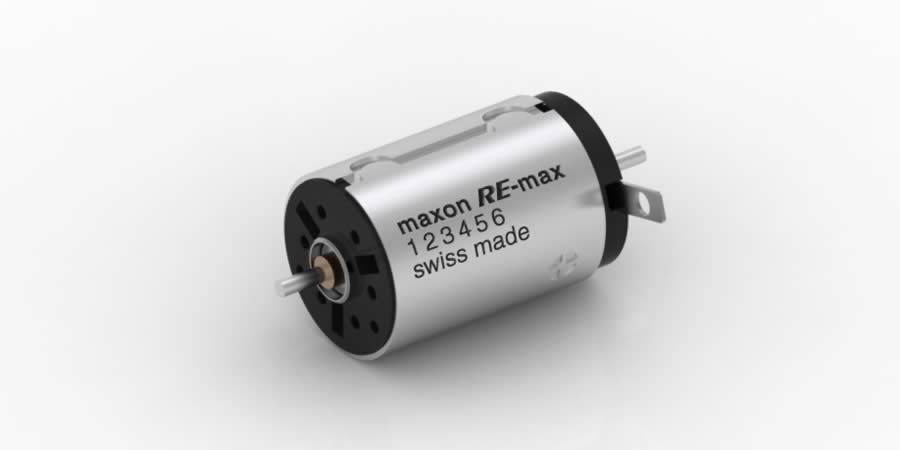

Specifications
Technical illustrations
- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 36 V |
| No load speed | 11300 rpm |
| No load current | 13.1 mA |
| Nominal speed | 8340 rpm |
| Nominal torque (max. continuous torque) | 3.61 mNm |
| Nominal current (max. continuous current) | 0.135 A |
| Stall torque | 13.9 mNm |
| Stall current | 0.473 A |
| Max. efficiency | 70 % |
| Characteristics | |
| Terminal resistance | 76.1 Ω |
| Terminal inductance | 1.75 mH |
| Torque constant | 29.5 mNm/A |
| Speed constant | 324 rpm/V |
| Speed / torque gradient | 836 rpm/mNm |
| Mechanical time constant | 7.13 ms |
| Rotor inertia | 0.814 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 35 K/W |
| Thermal resistance winding-housing | 12 K/W |
| Thermal time constant winding | 7.22 s |
| Thermal time constant motor | 343 s |
| Ambient temperature | -30...+85 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 11900 rpm |
| Axial play | 0.05 - 0.15 mm |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 0.8 N |
| Max. force for press fits (static) | 35 N |
| (static, shaft supported) | 200 N |
| Max. radial load | 1.4 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 7 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 26 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
