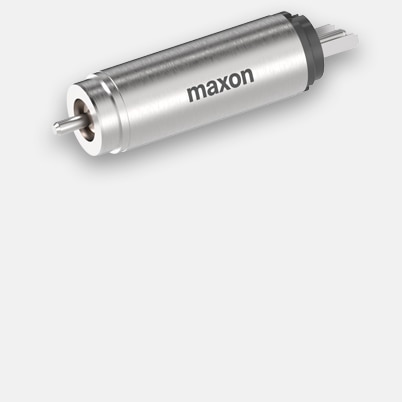

DCX 6 M Ø6 mm, precious metal brushes, ball bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €107.05* |
| 5-19 | €93.37* | |
| 20-49 | €79.58* | |
| from 50 | On request |
Specifications
Technical illustrations
- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 1.5 V |
| No load speed | 17200 rpm |
| No load current | 36.2 mA |
| Nominal speed | 4950 rpm |
| Nominal torque (max. continuous torque) | 0.309 mNm |
| Nominal current (max. continuous current) | 0.425 A |
| Stall torque | 0.453 mNm |
| Stall current | 0.581 A |
| Max. efficiency | 58 % |
| Characteristics | |
| Terminal resistance | 2.58 Ω |
| Terminal inductance | 0.0079 mH |
| Torque constant | 0.779 mNm/A |
| Speed constant | 12300 rpm/V |
| Speed / torque gradient | 40600 rpm/mNm |
| Mechanical time constant | 7.06 ms |
| Rotor inertia | 0.0166 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 105 K/W |
| Thermal resistance winding-housing | 20 K/W |
| Thermal time constant winding | 1.71 s |
| Thermal time constant motor | 79 s |
| Ambient temperature | -30...+85 °C |
| Max. winding temperature | +100 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 17300 rpm |
| Axial play | 0 mm, at radial load < 0.5 N |
| 0.1 mm, at radial load > 0.5 N | |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 0.1 N |
| Max. force for press fits (static) | 8.8 N |
| (static, shaft supported) | 100 N |
| Max. radial load | 0.6 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 5 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 2 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon DCX motors offer unrivaled power density (torque per volume) and absolutely quiet running. The robust engineering, combined with the globally patented ironless winding, make the DCX motors a highly dynamic drive for almost every application scenario.
The DCX 6 M is available as a small drive with ball bearings or sintered bearings.
