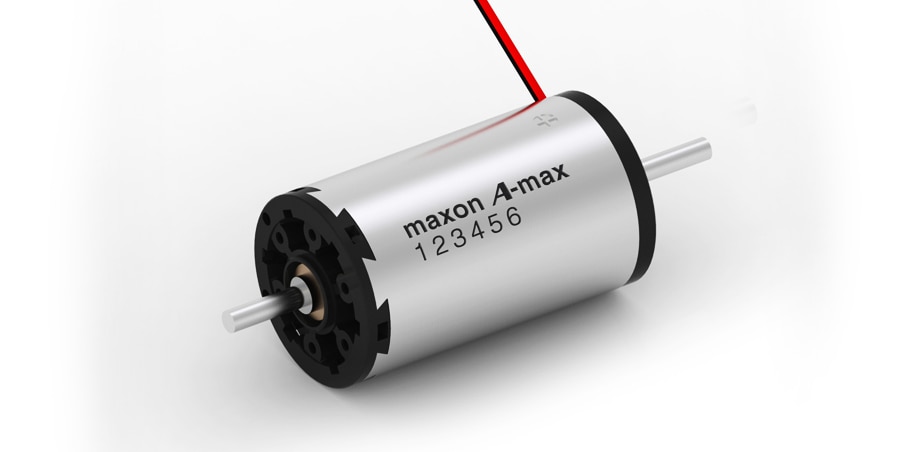

A-max 26 Ø26 mm, Precious Metal Brushes CLL, 4 Watt, with cable

Part number 353072

A-max 26 Ø26 mm, Precious Metal Brushes CLL, 4 Watt, with cable
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €122.94
5-19 €110.73
20-49 €100.31
from 50 On request

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

Specifications

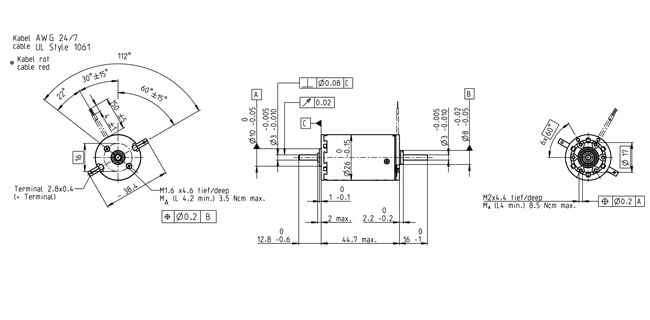

Technical illustrations

Information: Drawings are not to scale.

Values at nominal voltage
Nominal voltage 21 V
No load speed 4630 rpm
No load current 10.1 mA
Nominal speed 2610 rpm
Nominal torque (max. continuous torque) 13.1 mNm
Nominal current (max. continuous current) 0.315 A
Stall torque 30.3 mNm
Stall current 0.709 A
Max. efficiency 78 %
Characteristics
Terminal resistance 29.6 Ω
Terminal inductance 3.35 mH
Torque constant 42.7 mNm/A
Speed constant 224 rpm/V
Speed / torque gradient 155 rpm/mNm
Mechanical time constant 20.6 ms
Rotor inertia 12.7 gcm²
Thermal data
Thermal resistance housing-ambient 13.2 K/W
Thermal resistance winding-housing 3.2 K/W
Thermal time constant winding 13.5 s
Thermal time constant motor 422 s
Ambient temperature -30...+65 °C
Max. winding temperature +85 °C
Mechanical data
Bearing type sleeve bearing
Max. speed 6700 rpm
Axial play 0.1 - 0.2 mm
Radial play 0.012 mm
Max. axial load (dynamic) 1.7 N
Max. force for press fits (static) 80 N
(static, shaft supported) 1200 N
Max. radial load 5.5 N, 5 mm from flange
Other specifications
Number of pole pairs 1
Number of commutator segments 13
Number of autoclave cycles 0
Product
Weight 100 g
  • Operating Range

    Continuous operation range


    Short term operation range


Description

maxon A-max motors are an innovative range of high-quality DC motors, equipped with powerful AlNiCo permanent magnets. The “heart” of our motors is the ironless maxon winding, that has been tested millions of times over. This is the latest technology for compact, powerful and low-inertia drives.
