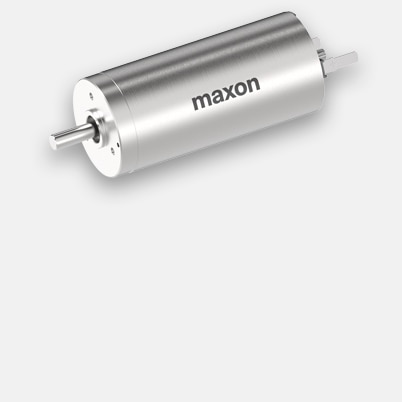

DCX 26 L Ø 26mm, graphite brushes, ball bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €267.99* |
| 5-19 | €233.78* | |
| 20-49 | €199.47* | |
| from 50 | On request |
Specifications
Technical illustrations

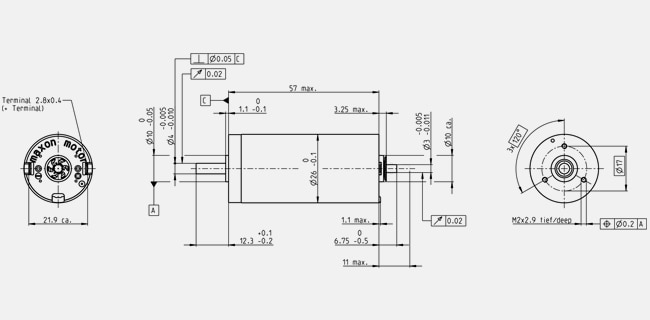

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 10700 rpm |
| No load current | 65.7 mA |
| Nominal speed | 9690 rpm |
| Nominal torque (max. continuous torque) | 57.8 mNm |
| Nominal current (max. continuous current) | 2.76 A |
| Stall torque | 695 mNm |
| Stall current | 32.4 A |
| Max. efficiency | 91 % |
| Characteristics | |
| Terminal resistance | 0.74 Ω |
| Terminal inductance | 0.129 mH |
| Torque constant | 21.4 mNm/A |
| Speed constant | 445 rpm/V |
| Speed / torque gradient | 15.4 rpm/mNm |
| Mechanical time constant | 3.45 ms |
| Rotor inertia | 21.4 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 10.2 K/W |
| Thermal resistance winding-housing | 3.01 K/W |
| Thermal time constant winding | 24.1 s |
| Thermal time constant motor | 620 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 14400 rpm |
| Axial play | 0 mm, at radial load < 5.5 N |
| 0.1 mm, at radial load > 5.5 N | |
| Radial play | 0.02 mm |
| Max. axial load (dynamic) | 5.5 N |
| Max. force for press fits (static) | 40 N |
| (static, shaft supported) | 500 N |
| Max. radial load | 20.5 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 11 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 170 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon DCX motors feature unrivaled power density (torque per volume) and absolutely quiet running. The robust engineering, combined with the globally patented ironless winding, make the DCX motors a highly dynamic drive for almost every application scenario.The DCX 26 L is a powerhouse. Preloaded ball bearings or sintered bearings, graphite or precious metal brushes with CLL – the extensive options make it suitable for a wide range of applications.
