ECX SPEED 13 M Ø13 mm, brushless, sensorless | High Power

ECX SPEED 13 M Ø13 mm, brushless, sensorless
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €255.89*
5-19 €199.89*
20-49 €162.84*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Specifications

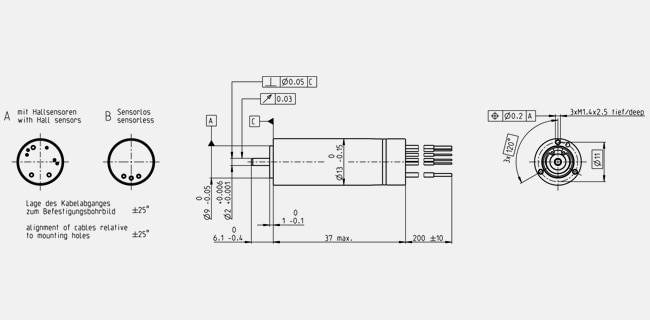

Technical illustrations

Values at nominal voltage
Nominal voltage 18 V
No load speed 66800 rpm
No load current 99.1 mA
Nominal speed 61400 rpm
Nominal torque (max. continuous torque) 5.88 mNm
Nominal current (max. continuous current) 2.37 A
Stall torque 80.2 mNm
Stall current 31.3 A
Max. efficiency 89 %
Characteristics
Terminal resistance 0.576 Ω
Terminal inductance 0.0204 mH
Torque constant 2.57 mNm/A
Speed constant 3720 rpm/V
Speed / torque gradient 835 rpm/mNm
Mechanical time constant 2.13 ms
Rotor inertia 0.244 gcm²
Thermal data
Thermal resistance housing-ambient 20 K/W
Thermal resistance winding-housing 2.53 K/W
Thermal time constant winding 2.01 s
Thermal time constant motor 311 s
Ambient temperature -20...+100 °C
Max. winding temperature +155 °C
Mechanical data
Bearing type Kugellager
Max. speed 70000 rpm
Axial play 0 mm, at radial load < 1.5 N
0.28 mm, at radial load > 1.5 N
Radial play 0 mm
Max. axial load (dynamic) 1.5 N
Max. force for press fits (static) 50 N
(static, shaft supported) 1500 N
Max. radial load 6 N, 5 mm from flange
Other specifications
Number of pole pairs 1
Number of phases 3
Number of autoclave cycles 0
Product
Weight 38 g
  • Operating Range

    Continuous operation range


    Short term operation range


Description

The brushless ECX Speed motors with an ironless winding have an extremely large speed range, high power, excellent control characteristics, and of course unrivaled durability.
