ECX SPEED 13M Ø13 mm, brushless, with Hall sensors
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €273.47* |
| 5-19 | €213.57* | |
| 20-49 | €173.99* | |
| from 50 | On request |
Specifications
Technical illustrations

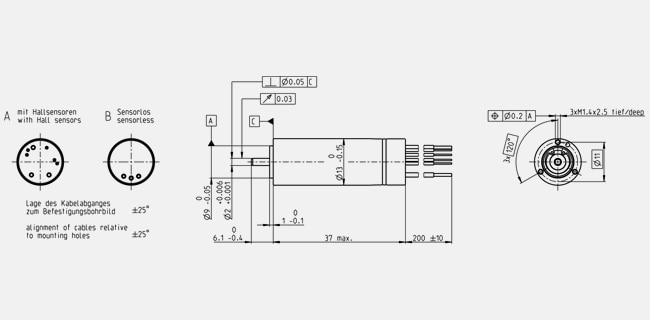

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 36 V |
| No load speed | 44300 rpm |
| No load current | 38.8 mA |
| Nominal speed | 36900 rpm |
| Nominal torque (max. continuous torque) | 4.05 mNm |
| Nominal current (max. continuous current) | 0.56 A |
| Stall torque | 25.4 mNm |
| Stall current | 3.32 A |
| Max. efficiency | 80 % |
| Characteristics | |
| Terminal resistance | 10.9 Ω |
| Terminal inductance | 0.232 mH |
| Torque constant | 7.66 mNm/A |
| Speed constant | 1250 rpm/V |
| Speed / torque gradient | 1770 rpm/mNm |
| Mechanical time constant | 4.51 ms |
| Rotor inertia | 0.244 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 20 K/W |
| Thermal resistance winding-housing | 2.21 K/W |
| Thermal time constant winding | 1.42 s |
| Thermal time constant motor | 306 s |
| Ambient temperature | -20...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Kugellager |
| Max. speed | 50000 rpm |
| Axial play | 0 mm, at radial load < 1.5 N |
| 0.28 mm, at radial load > 1.5 N | |
| Radial play | 0 mm |
| Max. axial load (dynamic) | 1.5 N |
| Max. force for press fits (static) | 50 N |
| (static, shaft supported) | 1500 N |
| Max. radial load | 6 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 24 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The brushless ECX Speed motors with an ironless winding have an extremely large speed range, high power, excellent control characteristics, and of course unrivaled durability.
The ECX SPEED 13 M is available with Hall sensors, encoder, or sensorless. It can be combined with gearheads, and the electrical connection is configurable. Order your ECX drive online now.
