ECX SPEED 13L Ø13 mm, ceramic bearings, brushless, with Hall sensors | Sterilizable
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €558.51* |
| 5-19 | €436.09* | |
| 20-49 | €355.36* | |
| from 50 | On request |
Specifications
Technical illustrations

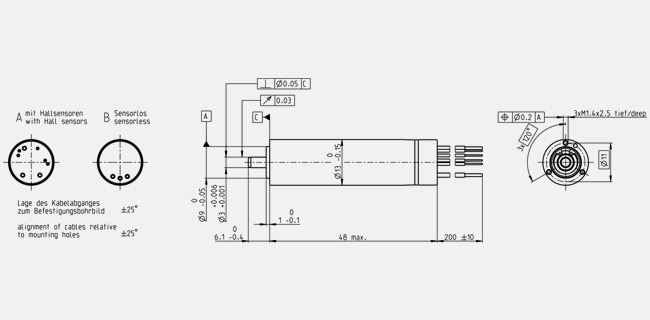

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 18 V |
| No load speed | 71000 rpm |
| No load current | 224 mA |
| Nominal speed | 66400 rpm |
| Nominal torque (max. continuous torque) | 7.3 mNm |
| Nominal current (max. continuous current) | 3.22 A |
| Stall torque | 126 mNm |
| Stall current | 52.3 A |
| Max. efficiency | 88 % |
| Characteristics | |
| Terminal resistance | 0.344 Ω |
| Terminal inductance | 0.0128 mH |
| Torque constant | 2.41 mNm/A |
| Speed constant | 3960 rpm/V |
| Speed / torque gradient | 567 rpm/mNm |
| Mechanical time constant | 1.87 ms |
| Rotor inertia | 0.315 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 19.5 K/W |
| Thermal resistance winding-housing | 2.04 K/W |
| Thermal time constant winding | 2.46 s |
| Thermal time constant motor | 397 s |
| Ambient temperature | -40...+135 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Kugellager |
| Max. speed | 120000 rpm |
| Axial play | 0 mm, at radial load < 1.5 N |
| 0.28 mm, at radial load > 1.5 N | |
| Radial play | 0 mm |
| Max. axial load (dynamic) | 1.5 N |
| Max. force for press fits (static) | 50 N |
| (static, shaft supported) | 1500 N |
| Max. radial load | 6 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 1000 |
| Product | |
| Weight | 41 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The brushless ECX Speed motors with an ironless winding have an extremely large speed range, high power, excellent control characteristics, and of course unrivaled durability.
The ECX SPEED 13 L is available with Hall sensors, encoder, or sensorless. It can be combined with gearheads, and the electrical connection is configurable. Order your ECX drive online now.
