NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.

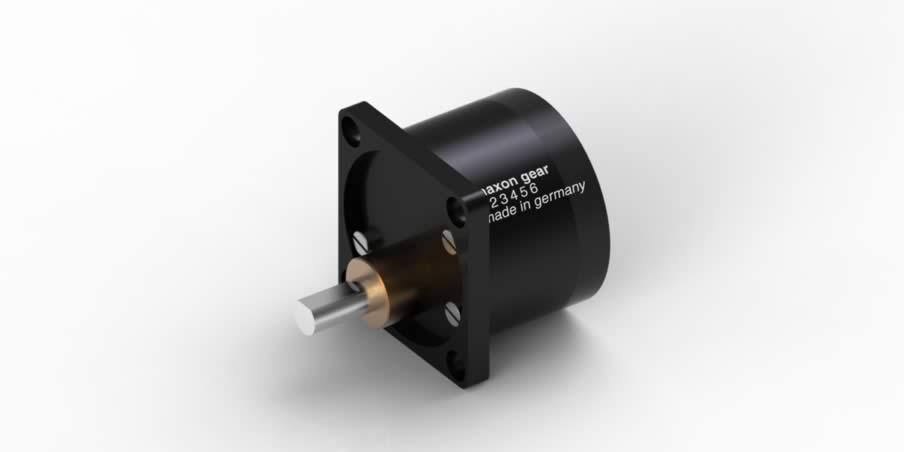

Specifications
Technical illustrations
- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GS |
| Outer diameter | 30 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 100 : 1 |
| Absolute reduction | 100/1 |
| Max. motor shaft diameter | 2 mm |
| Number of stages | 4 |
| Max. continuous torque | 0.1 Nm |
| Max. intermittent torque | 0.3 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 66 % |
| Average backlash no load | 1.5 ° |
| Mass inertia | 0.1 gcm² |
| Gearhead length (L1) | 25.5 mm |
| Max. transmittable power (continuous) | 0.52 W |
| Max. transmittable power (intermittent) | 1.6 W |
| Technical Data | |
| Bearing at output | sleeve bearing |
| Radial play | max. 0.1 mm, 5 mm from flange |
| Axial play | 0.03 - 0.2 mm |
| Max. radial load | 35 N, 5 mm from flange |
| Max. axial load (dynamic) | 15 N |
| Max. force for press fits | 400 N |
| Max. continuous input speed | 5000 rpm |
| Max. intermittent input speed | 5000 rpm |
| Recommended temperature range | -5...+80 °C |
| Extended temperature range | 80...+80 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 45 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
