Screw Drive GP 32 S Ø32 mm, Metric spindle, M10 x 1

Part number 363911

Screw Drive GP 32 S Ø32 mm, Metric spindle, M10 x 1
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €679.77
5-19 €585.35
20-49 €518.93
from 50 On request

Gears can be purchased only as a component of a combination.

Specifications

Technical illustrations

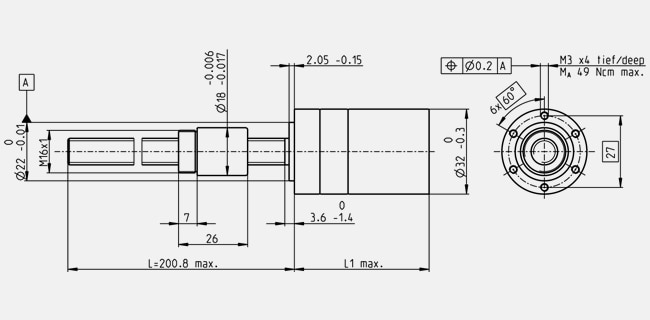

Information: Drawings are not to scale.

General information
Gearhead type GP
Outer diameter 32 mm
Version Spindle drive with metric screw
Gearhead Data
Number of stages 3
Reduction 66 : 1
Absolute reduction 16224/245
Max. motor shaft diameter 4 mm
Max. feed velocity 2 mm/s
Max. feed force continuous 671 N
Max. feed force intermittent 1350 N
Direction of rotation, drive to output =
Max. efficiency 19 %
Average backlash no load 1 °
Mechanical positioning accuracy 0.034 mm
Mass inertia 0.7 gcm²
Gearhead length (L1) 64.4 mm
Max. transmittable power (continuous) 76 W
Max. transmittable power (intermittent) 95 W
Technical Data
Spindle length 200 mm
Bearing at output ball bearing
Radial play max. 0.05 mm, 5 mm from flange
Axial play of the nut max. 0.008 mm
Max. radial load 400 N, 15 mm from flange
Max. axial load (dynamic) 2700 N
Max. force for press fits 2700 N
Max. continuous input speed 8000 rpm
Max. intermittent input speed 8000 rpm
Recommended temperature range -15...+80 °C
Extended temperature range 80...+80 °C
Number of autoclave cycles 0
Product
Weight 359 g

Description

Compact, easy to configure screw drives as complete systems. With integrated axial bearing for high axial loads. Versions with ball screw, metric spindle and trapezoidal spindle.
