| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €169.15 |
| 5-19 | €149.05 | |
| 20-49 | €125.15 | |
| from 50 | On request |
Specifications
Technical illustrations

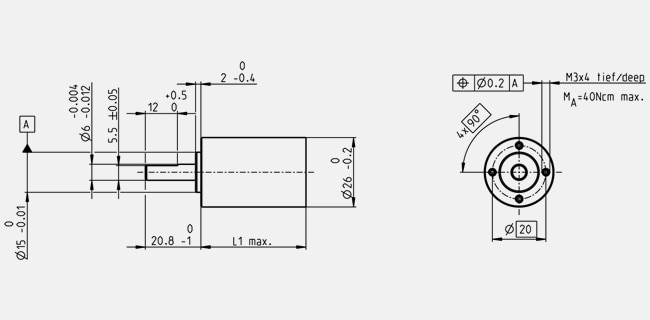

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GP |
| Outer diameter | 26 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 19.2 : 1 |
| Absolute reduction | 3591/187 |
| Max. motor shaft diameter | 3 mm |
| Number of stages | 2 |
| Max. continuous torque | 2.25 Nm |
| Max. intermittent torque | 3.2 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 80 % |
| Average backlash no load | 0.7 ° |
| Mass inertia | 0.54 gcm² |
| Gearhead length (L1) | 32.9 mm |
| Max. transmittable power (continuous) | 35 W |
| Max. transmittable power (intermittent) | 52.5 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.1 mm, 5 mm from flange |
| Axial play | 0 - 0.4 mm |
| Max. radial load | 110 N, 12 mm from flange |
| Max. force for press fits | 120 N |
| Max. continuous input speed | 8000 rpm |
| Max. intermittent input speed | 12000 rpm |
| Recommended temperature range | -30...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 77 g |
