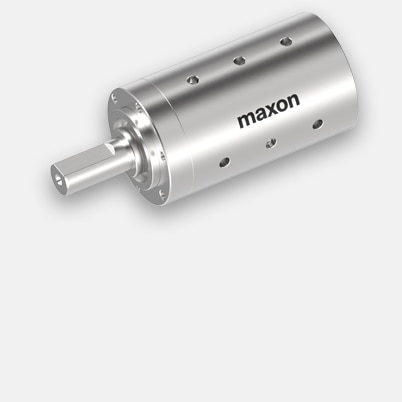

Planetary Gearhead GP 22 HD Ø22 mm, 2.0–4.0 Nm | Heavy Duty − for application in oil

Part number 416211

Planetary Gearhead GP 22 HD Ø22 mm, 2.0–4.0 Nm

For more information, please contact our sales support with the request form. Thank you

Gears can be purchased only as a component of a combination.

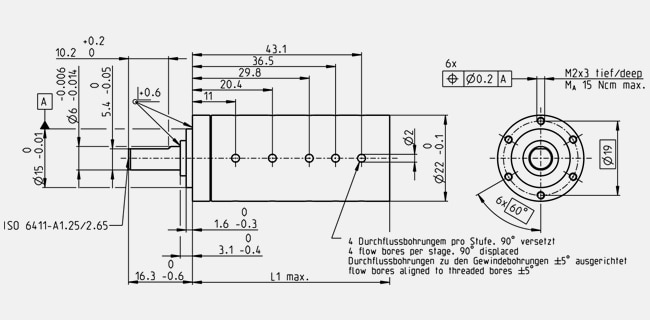

Technical illustrations

Information: Drawings are not to scale.

General information
Gearhead type GP
Outer diameter 22 mm
Version Heavy Duty
Gearhead Data
Reduction 742 : 1
Absolute reduction 759375/1024
Max. motor shaft diameter 4 mm
Number of stages 5
Max. continuous torque 4 Nm
Max. intermittent torque 4.4 Nm
Direction of rotation, drive to output =
Max. efficiency 52 %
Average backlash no load 2.5 °
Mass inertia 0.4 gcm²
Gearhead length (L1) 51.8 mm
Max. transmittable power (continuous) 4 W
Max. transmittable power (intermittent) 4.4 W
Technical Data
Bearing at output Waelzlager
Radial play max. 0.2 mm, 10 mm from flange
Axial play 0 - 0.1 mm
Max. radial load 110 N, 10 mm from flange
Max. axial load (dynamic) 100 N
Max. force for press fits 100 N
Max. continuous input speed 11000 rpm
Max. intermittent input speed 20000 rpm
Recommended temperature range -55...+200 °C
Number of autoclave cycles 0
Weight 110 g


Precision spur- and planetary gearheads matched to maxon motors. Gears are advantageously adapted directly to the desired motors in the delivery plant. The motor pinion is the input gearweel for the first stage and is rigidly affixed to the motor shaft.
