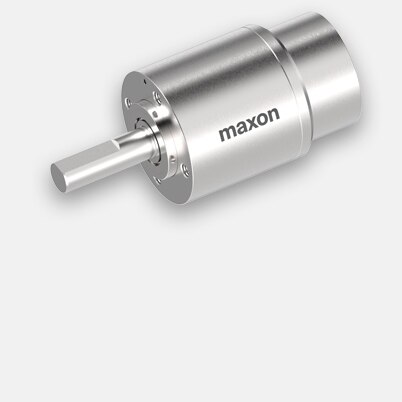

Planetary gearhead GPX 26 C Ø26 mm, 3-stage | Ceramic Version
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €211.78* |
| 5-19 | €172.94* | |
| 20-49 | €145.47* | |
| from 50 | On request |
Specifications
Technical illustrations

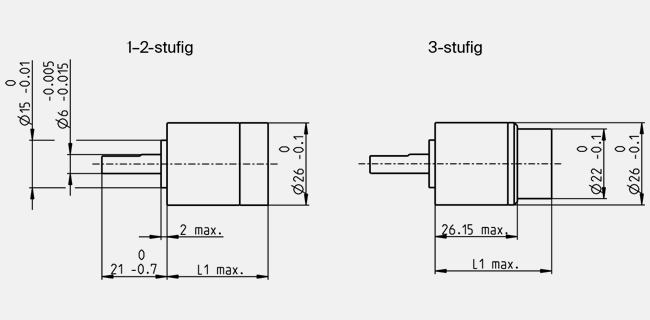

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GPX |
| Outer diameter | 26 mm |
| Version | Ceramic version |
| Gearhead Data | |
| Reduction | 172 : 1 |
| Absolute reduction | 326700/1900 |
| Number of stages | 3 |
| Max. continuous torque | 5 Nm |
| Max. intermittent torque | 6.3 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 75 % |
| Average backlash no load | 1.1 ° |
| Mass inertia | 1.282 gcm² |
| Gearhead length (L1) | 35.5 mm |
| Max. transmittable power (continuous) | 15 W |
| Max. transmittable power (intermittent) | 18 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.1 mm, 5 mm from flange |
| Axial play | 0 - 0.4 mm |
| Max. radial load | 150 N, 10 mm from flange |
| Max. axial load (dynamic) | 80 N |
| Max. force for press fits | 120 N |
| Max. continuous input speed | 10000 rpm |
| Max. intermittent input speed | 12500 rpm |
| Recommended temperature range | -40...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 105 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. The gearhead's ceramic components make it suitable for applications that require superior torque capacity and durability.The mechanical interfaces can be configured.
