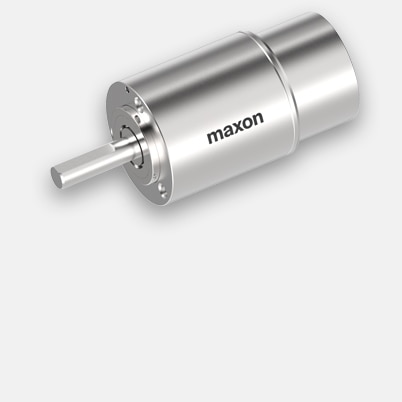

Planetary gearhead GPX 16 LN Ø16 mm, 3-stage | Reduced noise level
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €132.84* |
| 5-19 | €101.89* | |
| 20-49 | €81.58* | |
| from 50 | On request |
Specifications
Technical illustrations
- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GPX |
| Outer diameter | 16 mm |
| Version | Reduced noise level |
| Gearhead Data | |
| Reduction | 231 : 1 |
| Absolute reduction | 300564/1300 |
| Number of stages | 3 |
| Max. continuous torque | 0.28 Nm |
| Max. intermittent torque | 0.35 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 75 % |
| Average backlash no load | 1.3 ° |
| Mass inertia | 0.1061 gcm² |
| Gearhead length (L1) | 25.7 mm |
| Max. transmittable power (continuous) | 1.3 W |
| Max. transmittable power (intermittent) | 1.6 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.1 mm, 5 mm from flange |
| Axial play | 0 - 0.1 mm |
| Max. radial load | 70 N, 5 mm from flange |
| Max. axial load (dynamic) | 20 N |
| Max. force for press fits | 60 N |
| Max. continuous input speed | 16000 rpm |
| Max. intermittent input speed | 20000 rpm |
| Recommended temperature range | -40...+85 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 27 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
