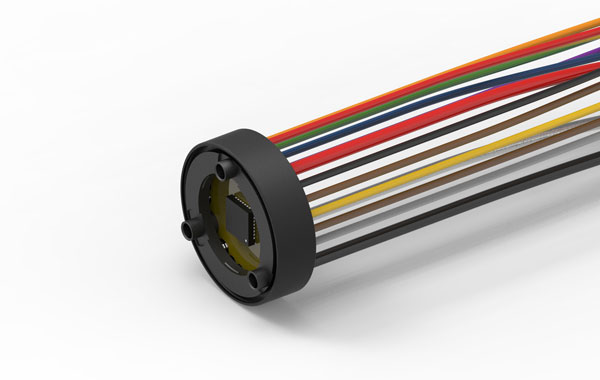

Encoder ENX 22 EASY INT, 1-1024 counts per turn, 3-channel differential

Encoder ENX 22 EASY INT, 1-1024 counts per turn, 3-channel differential
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €74.52*
5-19 €58.21*
20-49 €47.47*
from 50 On request

*Configurable products must be configured before ordering.
Prices may vary.

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 512
Number of channels 3
Line Driver RS422
Max. length of encoder housing -1.5 mm
Max. electrical speed 200000 rpm
Max. mechanical speed 200000 rpm
Technical Data
Supply voltage Vcc 5.0V ± 10.0%
Output signal EIA RS 422
Output signal INC + COMM
Driver used logic Differential, EIA RS 422
Output current per channel -20...20 mA
Signal rise time 60 ns
Measurement condition for signal rise time CL=25pF, RL=1kOhm
Signal fall time 60 ns
Measurement condition for signal fall time CL=25pF, RL=1kOhm
Min. state duration 62 ns
Direction of rotation A before B CW
Index position A low and B low
Index synchronized to AB Yes
Typical current draw at standstill 22 mA
Max. moment of inertia of code wheel 0.005 gcm²
Operating temperature -40...+125 °C
Orientation of encoder output to motor flange 0 °
Product
Weight 5 g

Description

maxon ENX encoders feature a robust design and high signal quality. The ENX EASY INT is a sterilizable 3-channel encoder with line driver in acc. with RS422. A resolution of up to 1024 counts per turn can be programmed ex works. The ESD protection network, cable strain relief and robust general design of the ENX series make it an excellent choice for high-precision position and speed control.
