ECX SPEED 19 L Ø19 mm, ceramic bearings, brushless, sensorless | Sterilizable
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €502.93* |
| 5-19 | €392.73* | |
| 20-49 | €319.99* | |
| from 50 | On request |
Specifications
Technical illustrations

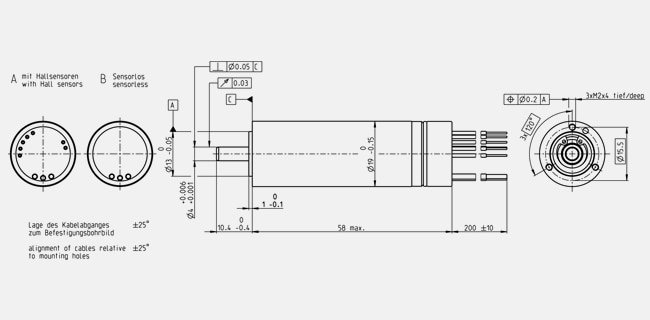

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 36 V |
| No load speed | 57100 rpm |
| No load current | 127 mA |
| Nominal speed | 54000 rpm |
| Nominal torque (max. continuous torque) | 24.9 mNm |
| Nominal current (max. continuous current) | 4.2 A |
| Stall torque | 619 mNm |
| Stall current | 103 A |
| Max. efficiency | 93 % |
| Characteristics | |
| Terminal resistance | 0.35 Ω |
| Terminal inductance | 0.0451 mH |
| Torque constant | 6.01 mNm/A |
| Speed constant | 1590 rpm/V |
| Speed / torque gradient | 92.4 rpm/mNm |
| Mechanical time constant | 1.73 ms |
| Rotor inertia | 1.79 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 10.1 K/W |
| Thermal resistance winding-housing | 0.9 K/W |
| Thermal time constant winding | 3.51 s |
| Thermal time constant motor | 418 s |
| Ambient temperature | -40...+135 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Kugellager |
| Max. speed | 100000 rpm |
| Axial play | 0 mm, at radial load < 4 N |
| 0.29 mm, at radial load > 4 N | |
| Radial play | 0 mm |
| Max. axial load (dynamic) | 4 N |
| Max. force for press fits (static) | 70 N |
| (static, shaft supported) | 5000 N |
| Max. radial load | 12 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 2000 |
| Product | |
| Weight | 108 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The brushless ECX Speed motors with an ironless winding have an extremely large speed range, high power, excellent control characteristics and of course unrivaled durability.The ECX SPEED 19 L is available with Hall sensors, encoder, or sensorless. It can be combined with gearheads, and the electrical connection is configurable. Order your ECX drive online now.
