Beyond combinations. Configure your drive individually.

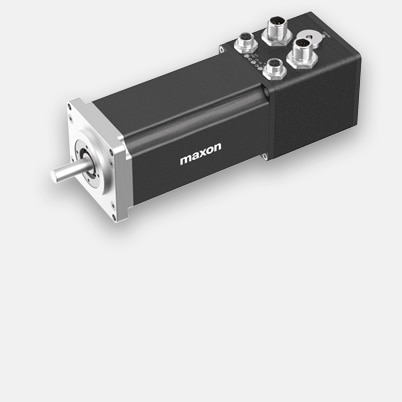

IDX 56 L, □56 mm, brushless, with integrated electronics, EtherCAT | Drive with positioning/speed controller
Price scales | Quantity | Price per unit |
---|---|---|
Prices excluding VAT and shipping costs | 1-4 | €1,369.64* |
5-19 | €1,149.23* | |
20-49 | €995.44* | |
from 50 | On request |
Specifications
Technical illustrations

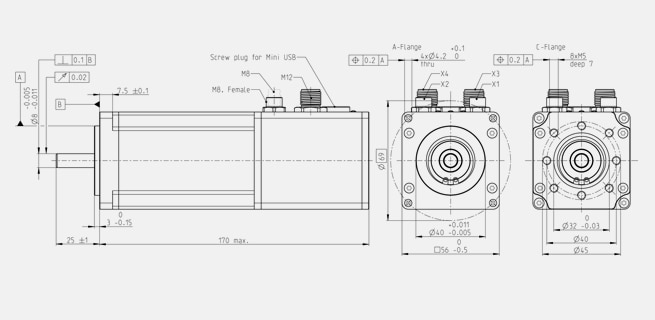

- Dimension drawing
Information: Drawings are not to scale.
Drive data | |
Nominal power supply voltage | 48 V |
Nominal speed | 3500 rpm |
Nominal torque @25°C (max. continuous torque) | 828 mNm |
Nominal torque @40°C (max. continuous torque) | 690 mNm |
Nominal supply current @25°C | 6.7 A |
Nominal supply current @40°C | 6.03 A |
Maximum speed at nominal voltage | 4915 rpm |
Maximum permissible drive speed | 6000 rpm |
Maximum torque (short-time) | 1.997 Nm |
Maximum supply current (short-time) | 24 A |
Rotor inertia | 265 gcm² |
Nominal supply voltage +Vcc | 12...48 V |
Run-up time to maximum speed | 6.9 ms |
Protection class | IP65 |
Commanding | EtherCAT |
Functionality | Positioning-Control |
Mechanical data | |
Axial play to | 0.14 mm |
Preload | 15 N |
Direction of force | Zug |
Max. axial load (dynamic) | 12 N |
Max. radial load, 12.5 mm from flange | 110 N |
Weight of the drive | 1445 g |
Description
maxon IDX drives consist of an EC-i motor, a magnetic absolute encoder (single-turn), and an EPOS4 positioning controller with integrated field-oriented control (FOC). The high-quality design complies with IP65 protection; only the output shaft needs to be sealed by the customer. The integrated temperature sensors on the winding and in the positioning controller are evaluated directly in the drive and enable optimal utilization of the operating range.Downloads
