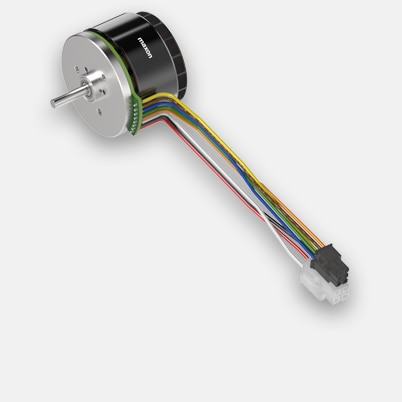

EC 45 flat Ø43.5 mm, brushless, 120 W, with Hall sensors and cable | Ventilated
Part number 608152
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €203.68 |
| 5-19 | €159.68 | |
| 20-49 | €124.94 | |
| from 50 | On request |
NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations
- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 5600 rpm |
| No load current | 277 mA |
| Nominal speed | 4520 rpm |
| Nominal torque (max. continuous torque) | 174 mNm |
| Nominal current (max. continuous current) | 4.13 A |
| Stall torque | 1690 mNm |
| Stall current | 41.9 A |
| Max. efficiency | 84 % |
| Characteristics | |
| Terminal resistance | 0.573 Ω |
| Terminal inductance | 0.301 mH |
| Torque constant | 40.4 mNm/A |
| Speed constant | 236 rpm/V |
| Speed / torque gradient | 3.35 rpm/mNm |
| Mechanical time constant | 6.35 ms |
| Rotor inertia | 181 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 1.94 K/W |
| Thermal resistance winding-housing | 3.86 K/W |
| Thermal time constant winding | 25.1 s |
| Thermal time constant motor | 97 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +125 °C |
| Mechanical data | |
| Max. speed | 10000 rpm |
| Other specifications | |
| Number of pole pairs | 8 |
| Number of phases | 3 |
| Product | |
| Weight | 149 g |
Description
The flat design of the brushless EC flat motors make them the perfect solution for many applications.The thought-through, simple design makes it possible to largely automate the manufacturing, which results in an economical price. The fan wheel provides active cooling during operation, which permits very high continuous torques.
