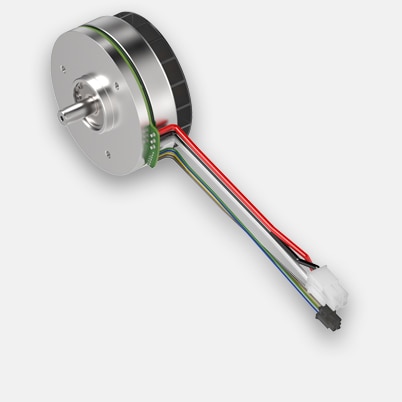

EC 90 flat Ø90 mm, brushless, 360 W, with Hall sensors and cables | ventilated

Part number 607954

EC 90 flat Ø90 mm, brushless, 360 W, with Hall sensors and cables
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €254.10
5-19 €213.26
20-49 €184.73
from 50 On request

Specifications

Technical illustrations

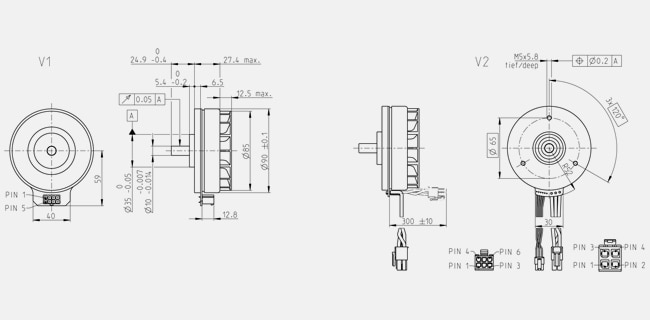

  • Dimension drawing
Values at nominal voltage
Nominal voltage 24 V
No load speed 3210 rpm
No load current 696 mA
Nominal speed 2340 rpm
Nominal torque (max. continuous torque) 961 mNm
Nominal current (max. continuous current) 12 A
Stall torque 5030 mNm
Stall current 113 A
Max. efficiency 85 %
Characteristics
Terminal resistance 0.213 Ω
Terminal inductance 0.232 mH
Torque constant 70.1 mNm/A
Speed constant 136 rpm/V
Speed / torque gradient 0.413 rpm/mNm
Mechanical time constant 13.9 ms
Rotor inertia 3210 gcm²
Thermal data
Thermal resistance housing-ambient 0.675 K/W
Thermal resistance winding-housing 0.923 K/W
Thermal time constant winding 17.3 s
Thermal time constant motor 100 s
Ambient temperature -40...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 5000 rpm
Axial play {0} {1}, at radial load {2} {3} {4}
0.14 mm, at radial load > 58 N
Max. axial load (dynamic) 34 N
Max. force for press fits (static) 440 N
(static, shaft supported) 8000 N
Max. radial load 100 N, 10 mm from flange
Other specifications
Number of pole pairs 11
Number of phases 3
Number of autoclave cycles 0
Product
Weight 638 g

Description

The flat design of the brushless EC flat motors makes them the perfect solution for many applications. The thought-through, simple design makes it possible to largely automate the manufacturing—this is reflected by the economical price.

The fan wheel provides active cooling during operation, which permits very high continuous torques.
