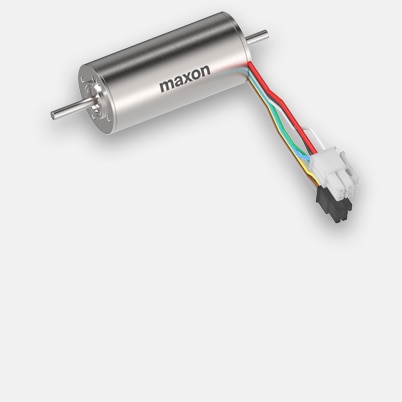

NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

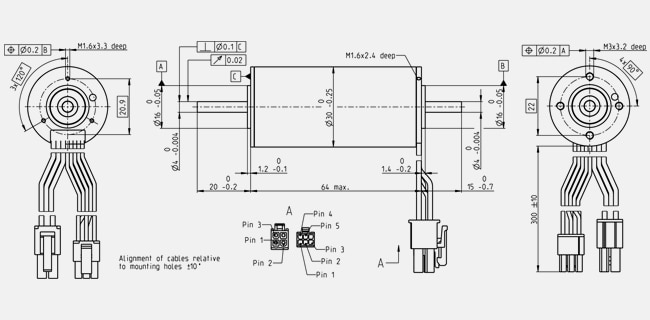

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 12 V |
| No load speed | 7940 rpm |
| No load current | 454 mA |
| Nominal speed | 6760 rpm |
| Nominal torque (max. continuous torque) | 107 mNm |
| Nominal current (max. continuous current) | 7.28 A |
| Stall torque | 890 mNm |
| Stall current | 102 A |
| Max. efficiency | 87 % |
| Characteristics | |
| Terminal resistance | 0.118 Ω |
| Terminal inductance | 0.0975 mH |
| Torque constant | 14.3 mNm/A |
| Speed constant | 668 rpm/V |
| Speed / torque gradient | 5.52 rpm/mNm |
| Mechanical time constant | 0.896 ms |
| Rotor inertia | 15.5 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 9.01 K/W |
| Thermal resistance winding-housing | 2.46 K/W |
| Thermal time constant winding | 31.3 s |
| Thermal time constant motor | 1090 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | ball bearings |
| Max. speed | 10000 rpm |
| Axial play | 0 mm, at radial load < 9 N |
| 0.14 mm, at radial load > 9 N | |
| Max. axial load (dynamic) | 5 N |
| Max. force for press fits (static) | 98 N |
| (static, shaft supported) | 1300 N |
| Max. radial load | 25 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 4 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 242 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
