Specifications

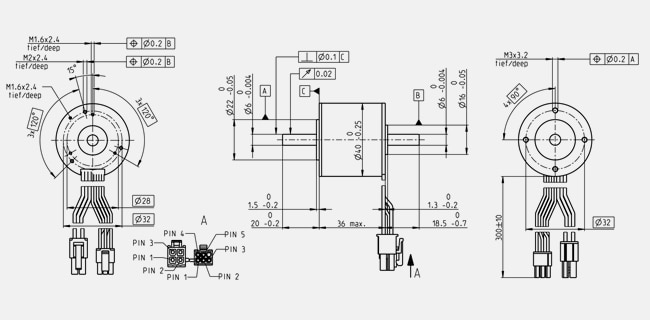

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
36 V |
| No load speed |
7390 rpm |
| No load current |
205 mA |
| Nominal speed |
6450 rpm |
| Nominal torque (max. continuous torque) |
130 mNm |
| Nominal current (max. continuous current) |
2.74 A |
| Stall torque |
1030 mNm |
| Stall current |
61.8 A |
| Max. efficiency |
89 % |
| Characteristics |
| Terminal resistance |
0.582 Ω |
| Terminal inductance |
0.512 mH |
| Torque constant |
46.1 mNm/A |
| Speed constant |
207 rpm/V |
| Speed / torque gradient |
2.62 rpm/mNm |
| Mechanical time constant |
0.632 ms |
| Rotor inertia |
23 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
8.17 K/W |
| Thermal resistance winding-housing |
2.27 K/W |
| Thermal time constant winding |
24.9 s |
| Thermal time constant motor |
1020 s |
| Ambient temperature |
-40...+100 °C |
| Max. winding temperature |
+155 °C |
| Mechanical data |
| Max. speed |
10000 rpm |
| Other specifications |
| Number of pole pairs |
7 |
| Number of phases |
3 |
| Product |
| Weight |
250 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description
Because of their optimized magnetic core, the brushless EC-i motors with iron core windings offer a very high torque density and low cogging torque. The multi-pole internal rotor is extremely dynamic. Its solid design with a steel flange and housing make this motor suitable for a wide range of applications. Order your EC-i drive online now.
